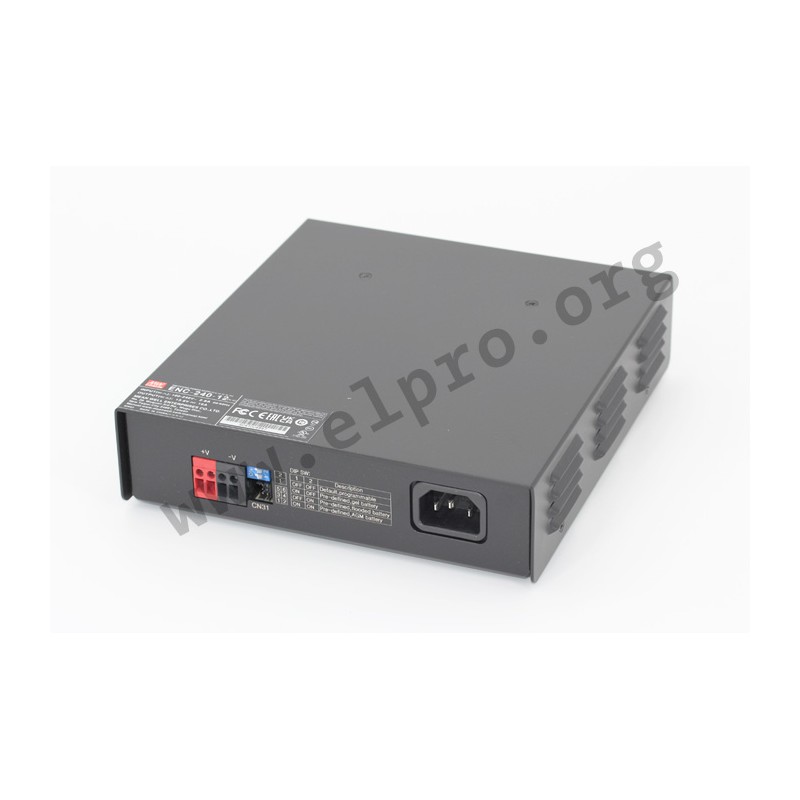

ENC-240-24

Mean Well charger series ENC-240

Battery chargers in a rugged housing with 240W, a temperature compensation function, a 3 stage programmable charging curve and a universal input. These devices are suitable for lead-acid as well as Li-ion batteries, have a fanless design and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against voltage reversal, short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: ENC-240-12, ENC-240-24 and ENC-240-48.

  • single output
  • output: 230,4W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • dimensions: 192x178x45,5mm
  • weight: 1230g

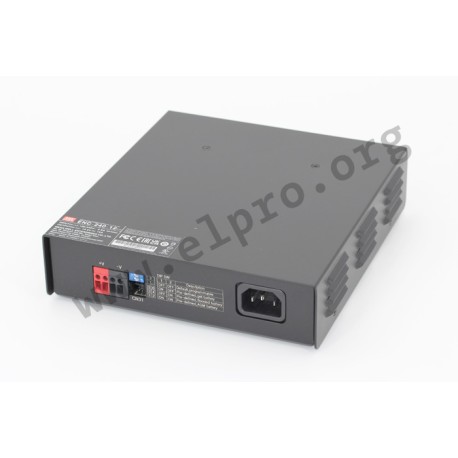

ENC-240-24, Mean Well desktop battery chargers, 240W, for lead-acid and Li-ion batteries, ENC-240 series

ENC-240-24

110279 ENC-240-24 ENC-240-24 4711287420783 Mean Well charger series ENC-240. Battery chargers in a rugged housing with 240W, a temperature compensation function, a 3 stage programmable charging curve and a universal input. These devices are suitable for lead-acid as well as Li-ion batteries, have a fanless design and comply with EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. They have a built-in active PFC function and are protected against voltage reversal, short circuit, overtemperature as well as overvoltage. We offer the following types of this Mean Well series: ENC-240-12, ENC-240-24 and ENC-240-48. single output output: 230,4W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C dimensions: 192x178x45,5mm weight: 1230g

Specifications

manufacturer
Manufacturer's name ENC-240-24
GTIN 4711287420783
Charging voltage [V] 28,8
Efficiency [%] 92
Output current [A] 0...8
Output power [W] 230,4
Data Sheet

Unit price

75,79 €

Volume discounts

Quantity Unit price
50 + 74,19 €

Stock: 22
Further delivery:
CW 17/2025
