ELP-75-5

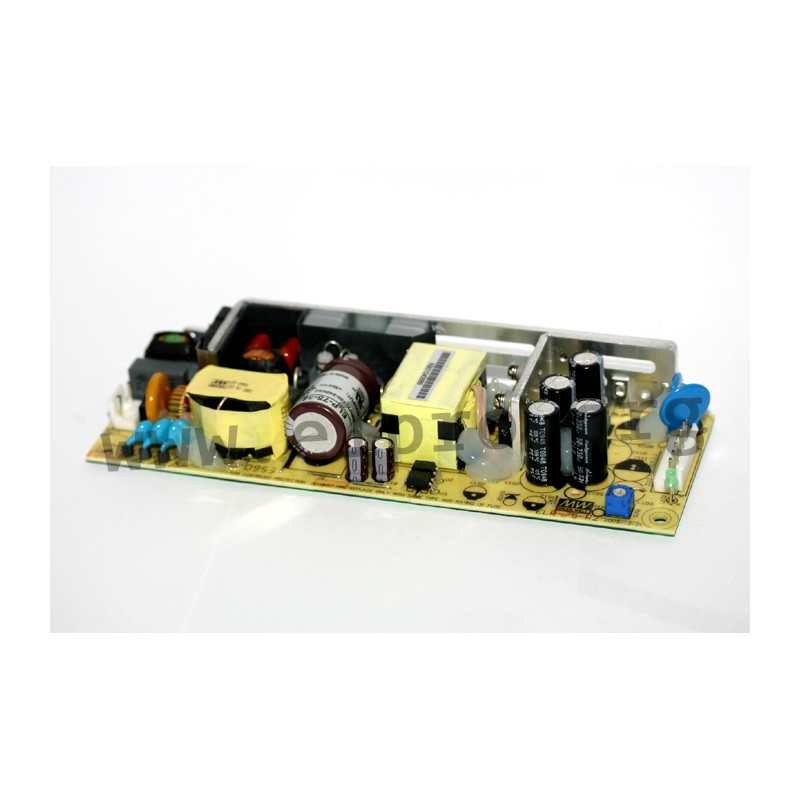

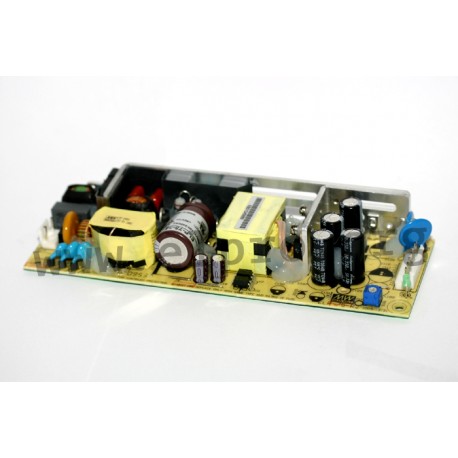

Mean Well power supply series ELP-75

Open frame type switching power supplies with 75W, a universal input and a low no-load power. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for nylon crimp terminals and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: ELPS-75-3.3, ELP-75-5, ELP-75-12, ELP-75-15, ELP-75-24, ELP-75-36 and ELP-75-48.

  • single output
  • output: 49,5 to 76,8W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • leakage current: <1mA
  • no-load power: <0,5W
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 250g

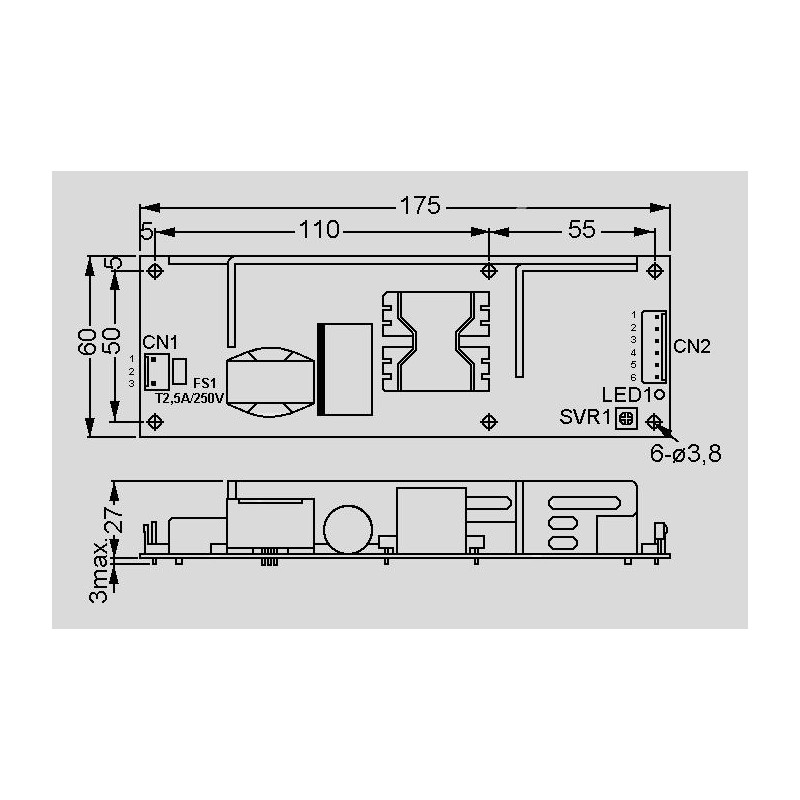

dimensions

ELP-75-5

35717 ELP-75-5 ELP-75-5 4711287425450 Mean Well power supply series ELP-75. Open frame type switching power supplies with 75W, a universal input and a low no-load power. These devices have a built-in&nbsp;active PFC function and are&nbsp;protected against overload (auto recovery), overvoltage as well as short circuit. They have a pin strip connection for&nbsp;nylon crimp terminals and comply with&nbsp;UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series:&nbsp;ELPS-75-3.3, ELP-75-5, ELP-75-12, ELP-75-15, ELP-75-24, ELP-75-36 and ELP-75-48. single output output: 49,5 to 76,8W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A leakage current: &lt;1mA no-load power: &lt;0,5W overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70&deg;C weight: 250g

Specifications

manufacturer
Manufacturer's name ELP-75-5
GTIN 4711287425450
Output voltage [V] 5
Phase 2 phase
Efficiency [%] 82
Output current range [A] 0...15
Output voltage tolerance: [%] 2
Output power [W] 75
Output voltage adjustment [V] 4,75..5,5
Ripple [mV] 80
Data Sheet

Unit price

26,19 €

Stock: 0
Further delivery:
CW 16/2025
