ELGC-300-M-A

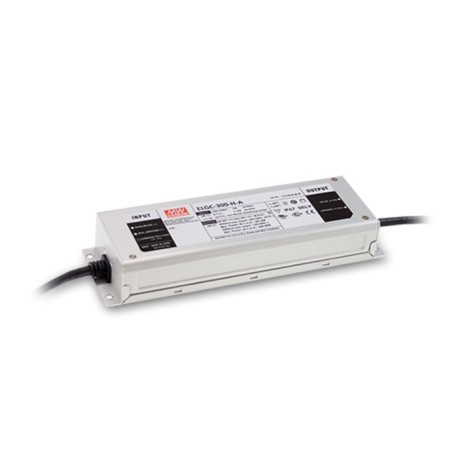

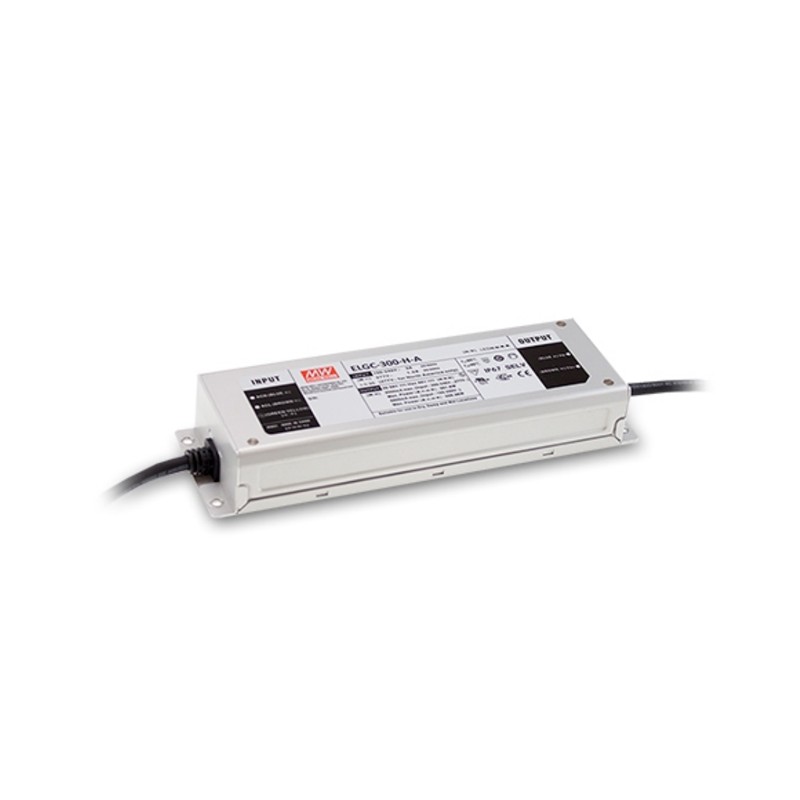

Mean Well LED driver series ELGC-300

LED drivers in a metal housing (IP67) with 300W, a constant power and a potentiometer for adjusting the output power. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: ELGC-300-L-A, ELGC-300-M-A and ELGC-300-H-A.

  • single output
  • output: 301,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g
ELGC-300-M-A, Mean Well LED drivers, 300W, IP67, constant power, adjustable, ELGC-300 series

ELGC-300-M-A

244872 ELGC-300-M-A ELGC-300-M-A 4711287447131 Mean Well LED driver series ELGC-300. LED drivers in a metal housing (IP67) with 300W, a constant power and a potentiometer for adjusting the output power. These devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: ELGC-300-L-A, ELGC-300-M-A and ELGC-300-H-A. single output output: 301,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 246x77x39,5mm weight: 1450g

Specifications

manufacturer
Manufacturer's name ELGC-300-M-A
GTIN 4711287447131
Output voltage [V] 58...116
Output current tolerance [%] 5
Output current [mA] 2800
Efficiency [%] 93,5
Output power [W] 301,6
Data Sheet
