ELGC-300-M-ADA

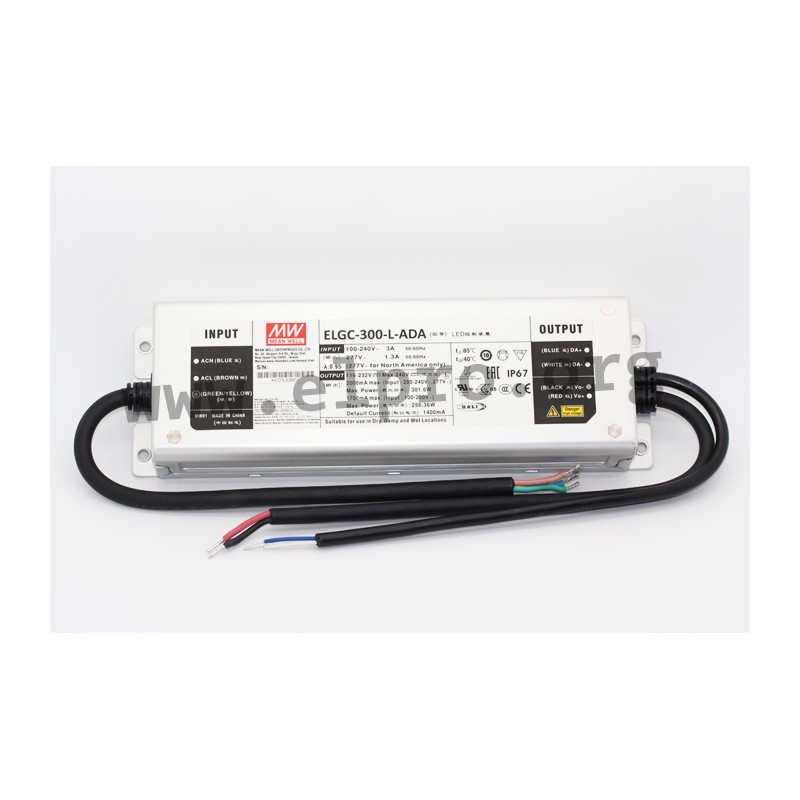

Mean Well LED driver series ELGC-300

LED drivers in a metal case (IP67) with a DALI 2.0 interface, a 6kV surge immunity level, a wide input range and 300W. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELGC-300-L-ADA, ELGC-300-M-ADA and ELGC-300-H-ADA.

  • single output
  • output: 301,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • maximal leakage current: <0,75mA
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 1450g

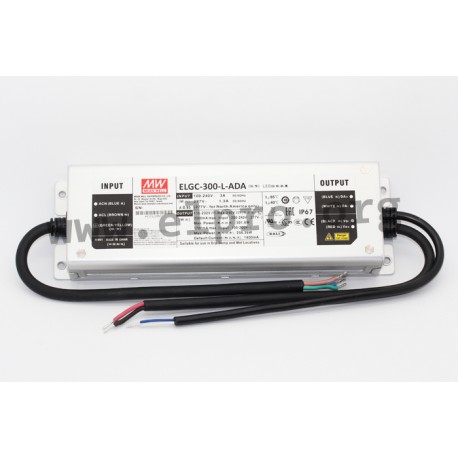

ELGC-300-M-ADA, Mean Well LED drivers, 300W, IP67, constant power, dimmable, DALI 2.0 interface, ELGC-300 series

ELGC-300-M-ADA

135892 ELGC-300-M-ADA ELGC-300-M-ADA 4711287447155 Mean Well LED driver series ELGC-300. LED drivers in a metal case (IP67) with a DALI 2.0 interface, a 6kV surge immunity level, a wide input range and 300W. These SELV compliant devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELGC-300-L-ADA, ELGC-300-M-ADA and ELGC-300-H-ADA. single output output: 301,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 45A maximal leakage current: &lt;0,75mA withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C weight: 1450g

Specifications

manufacturer
Manufacturer's name ELGC-300-M-ADA
GTIN 4711287447155
Output current tolerance [%] 5
Efficiency [%] 93,5
Output power [W] 301,6
Output current [mA] 2800
Output voltage range [V] 58...116
Data Sheet

Unit price

76,09 €

Volume discounts

Quantity Unit price
50 + 74,49 €

Stock: 1
Further delivery:
CW 16/2025
