ELGC-300-M-AB

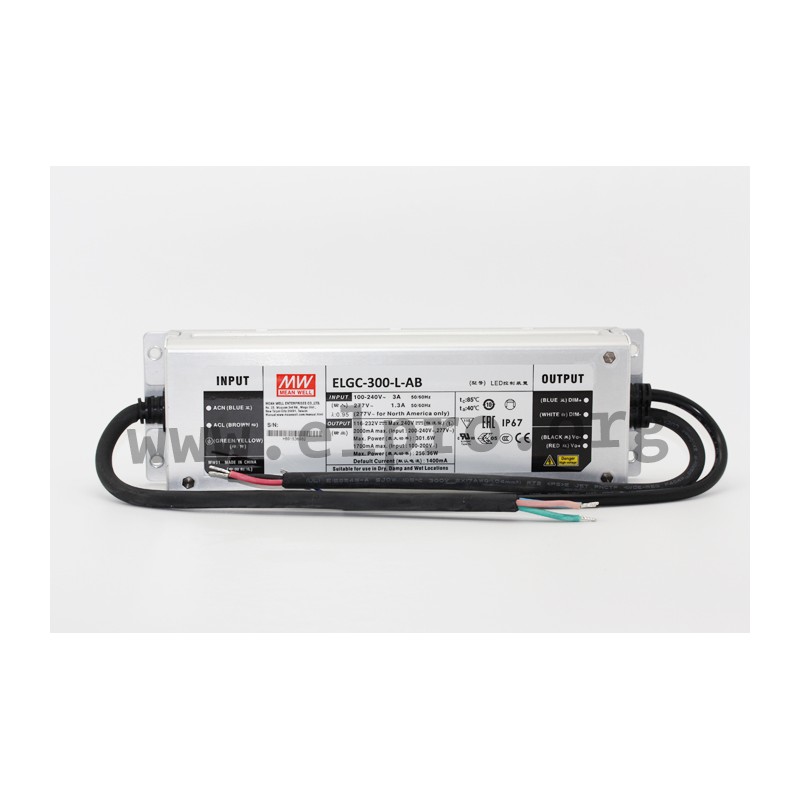

Mean Well LED driver series ELGC-300

LED drivers in a metal housing (IP67) with a constant power, a 6kV surge immunity level, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a built-in potentiometer for adjusting the current limitation. These SELV compliant (ELGC-300-M_/ELGC-300-H_) devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They have a built-in active PFC function and comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: ELGC-300-L-AB, ELGC-300-M-AB and ELGC-300-H-AB.

  • single output
  • output: 301,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g

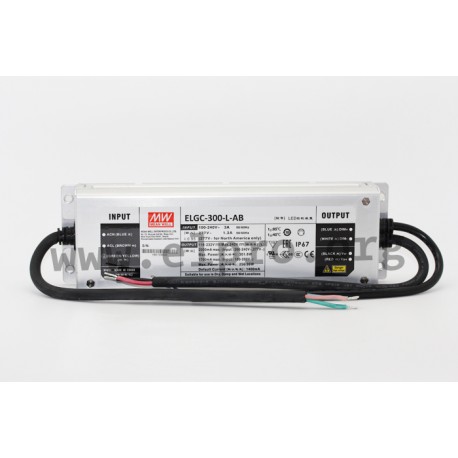

Mean Well ELGC-300 series

ELGC-300-M-AB

112747 ELGC-300-M-AB ELGC-300-M-AB 4711287447148 Mean Well LED driver series ELGC-300. LED drivers in a metal housing (IP67) with a constant power, a 6kV surge immunity level, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a built-in potentiometer for adjusting the current limitation. These SELV compliant (ELGC-300-M_/ELGC-300-H_) devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit and are suitable for LED lighting applications. They have a built-in active PFC function and comply with EN61347-2-13, EN61347-1, EN61547, EN55015, EN61000-3-2 class C as well as EN61000-3-3. We offer the following types of this Mean Well series: ELGC-300-L-AB, ELGC-300-M-AB and ELGC-300-H-AB. single output output: 301,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 246x77x39,5mm weight: 1450g

Specifications

manufacturer
Manufacturer's name ELGC-300-M-AB
GTIN 4711287447148
Output current tolerance [%] 5
Efficiency [%] 93,5
Output power [W] 301,6
Output current [mA] 2800
Output voltage range [V] 58...116
Data Sheet

Unit price

74,09 €

Volume discounts

Quantity Unit price
50 + 72,49 €

Stock: 20
Further delivery:
CW 16/2025
