ELG-75-12AB-3Y

Mean Well LED driver series ELG-75-C

LED power supplies in a metal case (IP65) with a constant voltage and a constant current suitable for indoor and outdoor LED lighting applications. The output current and voltage of these devices are adjustable through a built-in potentiometer on the bottom side of the case. Furthermore, they have a 3 in 1 dimming function (PWM, 100k Ohm potentiometer and 0 to 10V DC) through an executed control line, an included PE and a built-in active PFC function. These independent power supplies with a wide input range are SELV compliant and protected against short circuit, overcurrent, overtemperature, overvoltage and overload through constant current limiting (auto recovery). They meet a 6kV surge immunity level and are also in compliance with safety standards EN 61347-1 and EN 61347-2-13 as well as EMC standards EN 55015, EN 61000-3-2 Class C, EN 61000-3-3 and EN 61547. We offer the following types of this Mean Well series: ELG-75-12AB-3Y, ELG-75-24AB-3Y, ELG-75-36AB-3Y, ELG-75-42AB-3Y and ELG-75-48AB-3Y.

  • single output
  • power: 60 to 76,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 800g

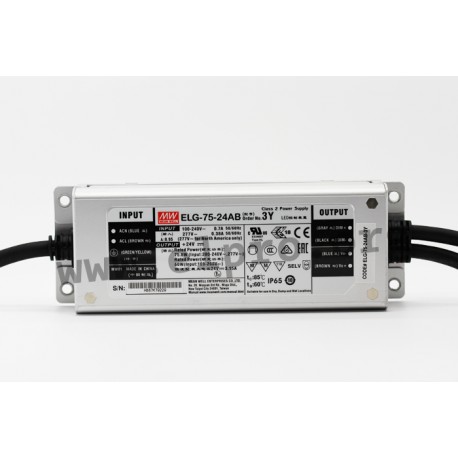

Mean Well ELG-75-_AB-3Y series

ELG-75-12AB-3Y

113215 ELG-75-12AB-3Y ELG-75-12AB-3Y 4711287438917 Mean Well LED driver series ELG-75-C. LED power supplies in a metal case (IP65) with a constant voltage and a constant current suitable for indoor and outdoor LED lighting applications. The output current and voltage of these devices are adjustable through a built-in potentiometer on the bottom side of the case. Furthermore, they have a 3 in 1 dimming function (PWM, 100k Ohm potentiometer and 0 to 10V DC) through an executed control line, an included PE and a built-in active PFC function. These independent power supplies with a wide input range are SELV compliant and protected against short circuit, overcurrent, overtemperature, overvoltage and overload through constant current limiting (auto recovery). They meet a 6kV surge immunity level and are also in compliance with safety standards EN 61347-1 and EN 61347-2-13 as well as EMC standards EN 55015, EN 61000-3-2 Class C, EN 61000-3-3 and EN 61547. We offer the following types of this Mean Well series: ELG-75-12AB-3Y, ELG-75-24AB-3Y, ELG-75-36AB-3Y, ELG-75-42AB-3Y and ELG-75-48AB-3Y. single output power: 60 to 76,8W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 50A overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C weight: 800g

Specifications

manufacturer
Manufacturer's name ELG-75-12AB-3Y
GTIN 4711287438917
Output voltage [V] 12
Efficiency [%] 85
Output current [A] 5
Output voltage tolerance: [%] 3
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

32,89 €

Volume discounts

Quantity Unit price
50 + 30,99 €

Stock: 46
Next incoming goods:
CW 50/2024
32 units

Further delivery:
CW 11/2025
