ELG-75-36B-3Y

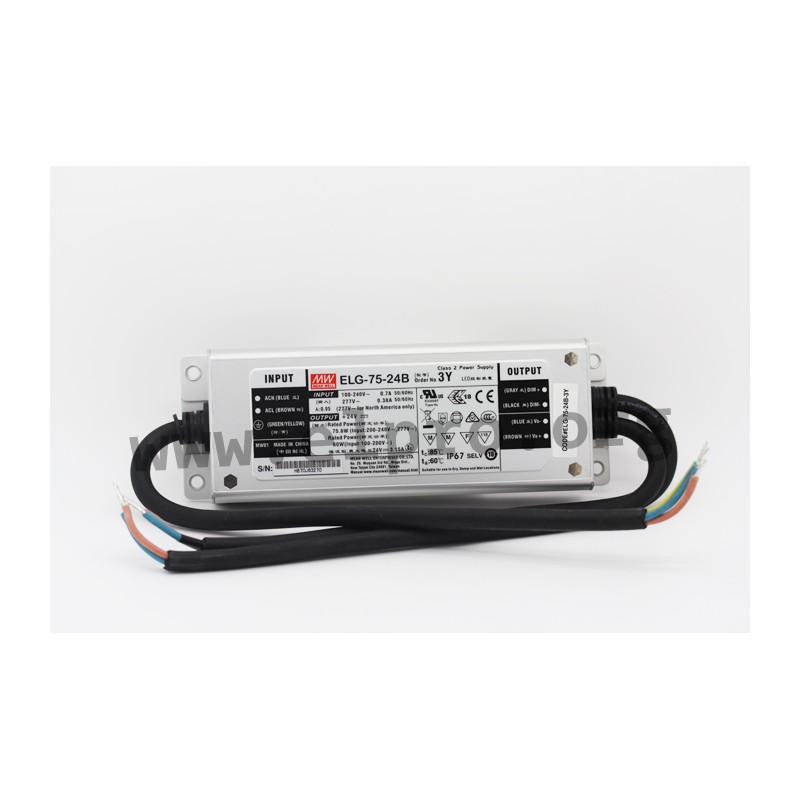

Mean Well LED driver series ELG-75

LED drivers in a metal housing (IP67) with a constant current / constant voltage (mixed mode), 75W and a 3 in 1 dimming function (0 to 10V DC, PWM, potentiometer). These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 and 6kV Surge Immunity Level and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-75-12B-3Y, ELG-75-24B-3Y, ELG-75-36B-3Y, ELG-75-42B-3Y and ELG-75-48B-3Y.

  • single output
  • output: 60 to 76,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 180x63x35,5mm
  • weight: 800g
Mean Well ELG-75-_B-3Y series

ELG-75-36B-3Y

109222 ELG-75-36B-3Y ELG-75-36B-3Y 4711287439211 Mean Well LED driver series ELG-75. LED drivers in a metal housing (IP67) with a constant current / constant voltage (mixed mode), 75W and a 3 in 1 dimming function (0 to 10V DC, PWM, potentiometer). These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 and 6kV Surge Immunity Level and are protected against overload (auto recovery), short circuit, overvoltage as well as overtemperature. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-75-12B-3Y, ELG-75-24B-3Y, ELG-75-36B-3Y, ELG-75-42B-3Y and ELG-75-48B-3Y. single output output: 60 to 76,8W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 50A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 180x63x35,5mm weight: 800g

Specifications

manufacturer
Manufacturer's name ELG-75-36B-3Y
GTIN 4711287439211
Output voltage [V] 36
Efficiency [%] 89
Output current [A] 2,1
Output voltage tolerance: [%] 2,5
Output power [W] 75,6
Ripple [mVp-p] 250
Data Sheet

Unit price

31,99 €

Volume discounts

Quantity Unit price
50 + 30,09 €

Stock: 6
Further delivery:
CW 17/2025
