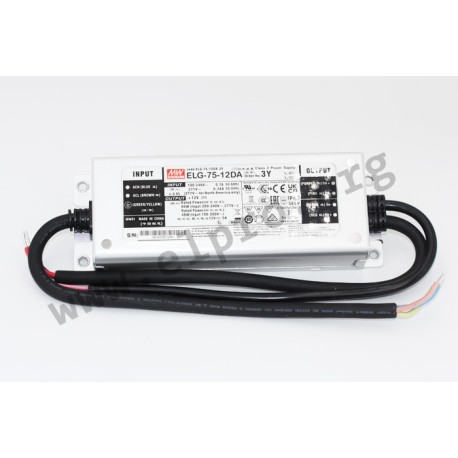

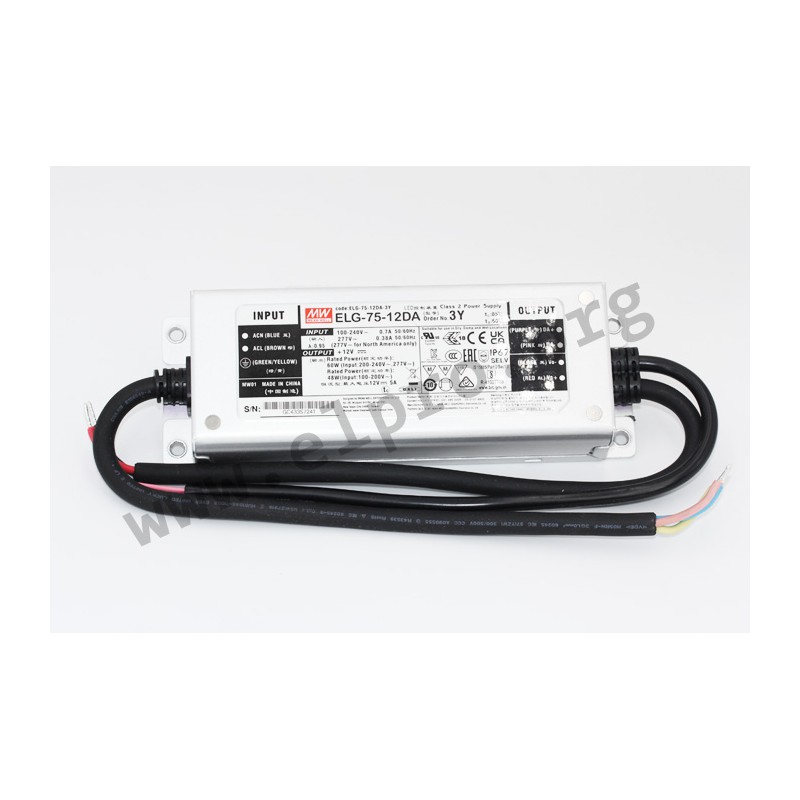

ELG-75-12DA-3Y

Mean Well LED driver series ELG-75

LED drivers in a metal housing (IP67) with a constant current, a DALI interface, 75W and a protective earth conductor PE. These devices are suitable for LED lighting applications and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-75-12DA-3Y, ELG-75-24DA-3Y, ELG-75-36DA-3Y, ELG-75-42DA-3Y and ELG-75-48DA-3Y.

  • single output
  • output: 60 to 76,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 180x63x35,5mm
  • weight: 800g
ELG-75-12DA-3Y, Mean Well LED drivers, 75W, IP67, CV and CC (mixed mode), DALI interface, protective earth conductor (PE), ELG-7

ELG-75-12DA-3Y

109216 ELG-75-12DA-3Y ELG-75-12DA-3Y 4711287438993 Mean Well LED driver series ELG-75. LED drivers in a metal housing (IP67) with a constant current, a DALI interface, 75W and a protective earth conductor PE. These devices are suitable for LED lighting applications and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-75-12DA-3Y, ELG-75-24DA-3Y, ELG-75-36DA-3Y, ELG-75-42DA-3Y and ELG-75-48DA-3Y. single output output: 60 to 76,8W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 50A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 180x63x35,5mm weight: 800g

Specifications

manufacturer
Manufacturer's name ELG-75-12DA-3Y
GTIN 4711287438993
Output voltage [V] 12
Output current tolerance [%] 3
Efficiency [%] 85
Output current [A] 5
Output power [W] 60
Ripple [mVp-p] 150
Data Sheet

Unit price

30,29 €

Volume discounts

Quantity Unit price
50 + 28,39 €

Stock: 247
Further delivery:
CW 11/2025
