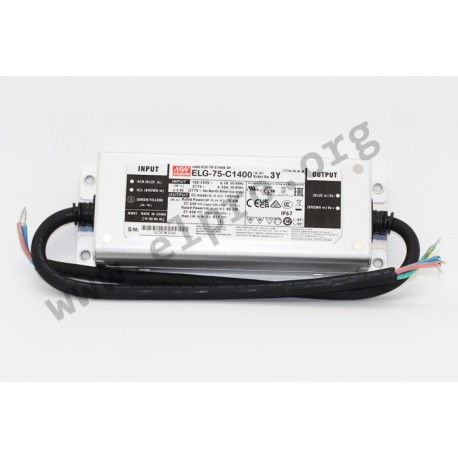

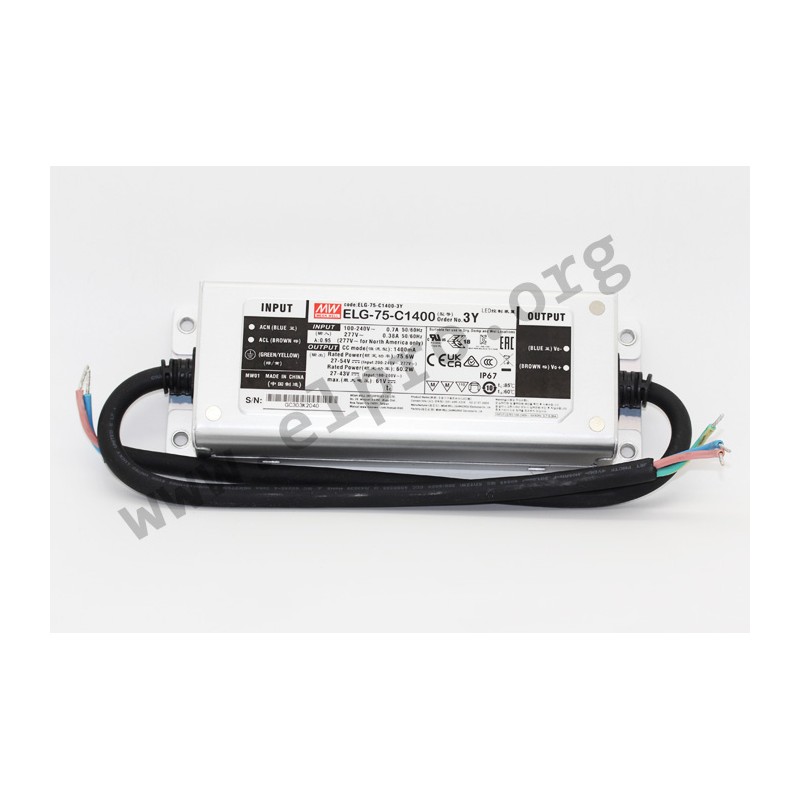

ELG-75-C350-3Y

Mean Well LED driver series ELG-75-C

LED drivers in a metal housing (IP67) with 75W, a protective earth conductor (PE) and a constant current. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, have a fixed output current and comply with EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-3 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: ELG-75-C350-3Y, ELG-75-C500-3Y, ELG-75-C700-3Y, ELG-75-C1050-3Y and ELG-75-C1400-3Y.

  • single output
  • output: 74,55 to 75,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 180x63x35,5mm
  • weight: 800g
ELG-75-C350-3Y, Mean Well LED drivers, 75W, IP67, constant current, fixed preset, protective earth conductor (PE), ELG-75-C seri

ELG-75-C350-3Y

244717 ELG-75-C350-3Y ELG-75-C350-3Y 4711287481494 Mean Well LED driver series ELG-75-C. LED drivers in a metal housing (IP67) with 75W, a protective earth conductor (PE) and a constant current. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, have a fixed output current and comply with EN61347-1, EN61347-2-13, EN55015, EN61547, EN61000-3-3 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: ELG-75-C350-3Y, ELG-75-C500-3Y, ELG-75-C700-3Y, ELG-75-C1050-3Y and ELG-75-C1400-3Y. single output output: 74,55 to 75,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 180x63x35,5mm weight: 800g

Specifications

manufacturer
Manufacturer's name ELG-75-C350-3Y
GTIN 4711287481494
Output voltage [V] 107...214
Output current tolerance [%] 5
Output current [mA] 350
Efficiency [%] 91
Output power [W] 74,9
Data Sheet

Unit price

29,99 €

Stock: 0
Further delivery:
CW 16/2025
