ELG-75-C1050B-3Y

Mean Well LED driver series ELG-75-C

LED drivers in a metal housing (IP67) with a constant current, a protective earth conductor PE and 75W. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV Surge Immunity Level. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-75-C350B-3Y, ELG-75-C500B-3Y, ELG-75-C700B-3Y, ELG-75-C1050B-3Y and ELG-75-C1400B-3Y.

  • single output
  • output: 74,55 to 75,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 50A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 180x63x35,5mm
  • weight: 800g

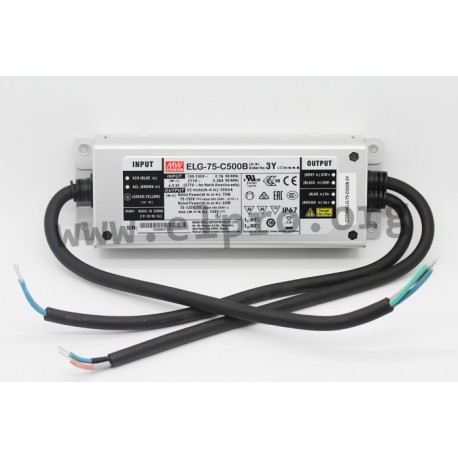

Mean Well ELG-75-C_B-3Y series

ELG-75-C1050B-3Y

109304 ELG-75-C1050B-3Y ELG-75-C1050B-3Y 4711287481401 Mean Well LED driver series ELG-75-C. LED drivers in a metal housing (IP67) with a constant current, a protective earth conductor PE and 75W. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV Surge Immunity Level. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-75-C350B-3Y, ELG-75-C500B-3Y, ELG-75-C700B-3Y, ELG-75-C1050B-3Y and ELG-75-C1400B-3Y. single output output: 74,55 to 75,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 50A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 180x63x35,5mm weight: 800g

Specifications

manufacturer
Manufacturer's name ELG-75-C1050B-3Y
GTIN 4711287481401
Output voltage [V] 35...71
Output current tolerance [%] 5
Efficiency [%] 90
Output power [W] 74,55
Output current [mA] 1050
Data Sheet

Unit price

31,99 €

Volume discounts

Quantity Unit price
50 + 30,09 €

Stock: 0
Next incoming goods:
CW 48/2024
17 units

Further delivery:
CW 11/2025
