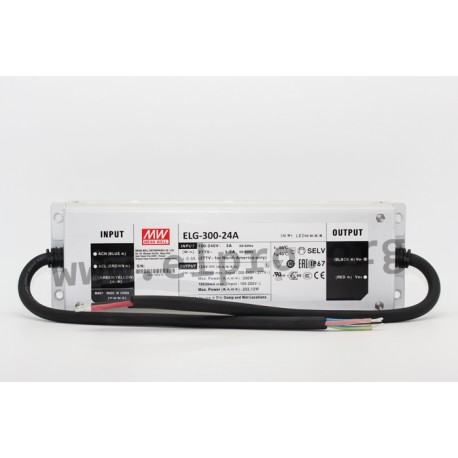

ELG-300-24A

Mean Well LED driver series ELG-300

LED drivers in a metal housing (IP67) with a 6kV surge immunity level, a constant current, 300W and a built-in potentiometer for adjusting the current limitation. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-300-12A and ELG-300-24A.

  • single output
  • output: 264 to 300W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 45A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 246x77x39,5mm
  • weight: 1450g
ELG-300-24A

ELG-300-24A

113253 ELG-300-24A ELG-300-24A 4711287443379 Mean Well LED driver series ELG-300. LED drivers in a metal housing (IP67) with a 6kV surge immunity level, a constant current, 300W and a built-in potentiometer for adjusting the current limitation. These SELV compliant devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage, are suitable for LED lighting applications and are not dimmable. They comply with EN55015, EN61547, EN61000-3-2 class C, EN61000-3-3, EN61347-1 as well as EN61347-2-13 and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-300-12A and ELG-300-24A. single output output: 264 to 300W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 45A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 246x77x39,5mm weight: 1450g

Specifications

manufacturer
Manufacturer's name ELG-300-24A
GTIN 4711287443379
Output voltage [V] 24
Efficiency [%] 93
Output current [A] 12,5
Output voltage tolerance: [%] 2
Output power [W] 300
Ripple [mVp-p] 240
Data Sheet

Unit price

58,59 €

Volume discounts

Quantity Unit price
50 + 57,09 €

Stock: 318
