ELG-240-48-3Y

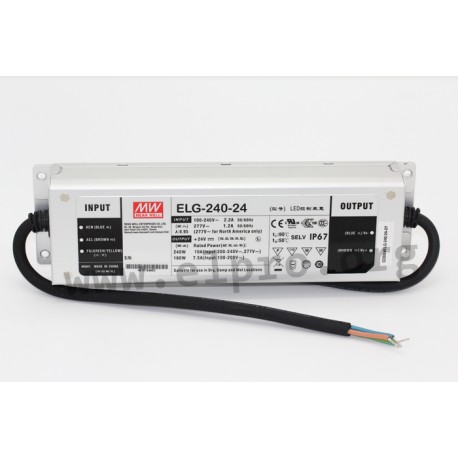

Mean Well LED driver series ELG-240

LED drivers in a metal housing (IP67) with a protective earth conductor PE, a constant voltage and a 6kV surge immunity level. These devices comply with EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They are not dimmable and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. We offer the follwing types of this Mean Well series: ELG-240-24-3Y, ELG-240-36-3Y, ELG-240-42-3Y, ELG-240-48-3Y and ELG-240-54-3Y.

  • single output
  • output: 239,76 to 240,3W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g
ELG-240-48-3Y,Mean Well LED drivers, 240W, IP67, with protective earth PE, ELG-240 series

ELG-240-48-3Y

123291 ELG-240-48-3Y ELG-240-48-3Y 4711287443010 Mean Well LED driver series ELG-240. LED drivers in a metal housing (IP67) with a protective earth conductor PE, a constant voltage and a 6kV surge immunity level. These devices comply with EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547, EN61347-1 as well as EN61347-2-13 and are suitable for LED lighting applications. They are not dimmable and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. We offer the follwing types of this Mean Well series: ELG-240-24-3Y, ELG-240-36-3Y, ELG-240-42-3Y, ELG-240-48-3Y and ELG-240-54-3Y. single output output: 239,76 to 240,3W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-240-48-3Y
GTIN 4711287443010
Output voltage [V] 48
Efficiency [%] 93
Output current [A] 5
Output voltage tolerance: [%] 2
Output power [W] 240
Ripple [mVp-p] 250
Data Sheet

Unit price

46,09 €

Volume discounts

Quantity Unit price
50 + 45,19 €

Stock: 11
Next incoming goods:
CW 09/2025
50 units

Further delivery:
CW 11/2025
