ELG-240-54B-3Y

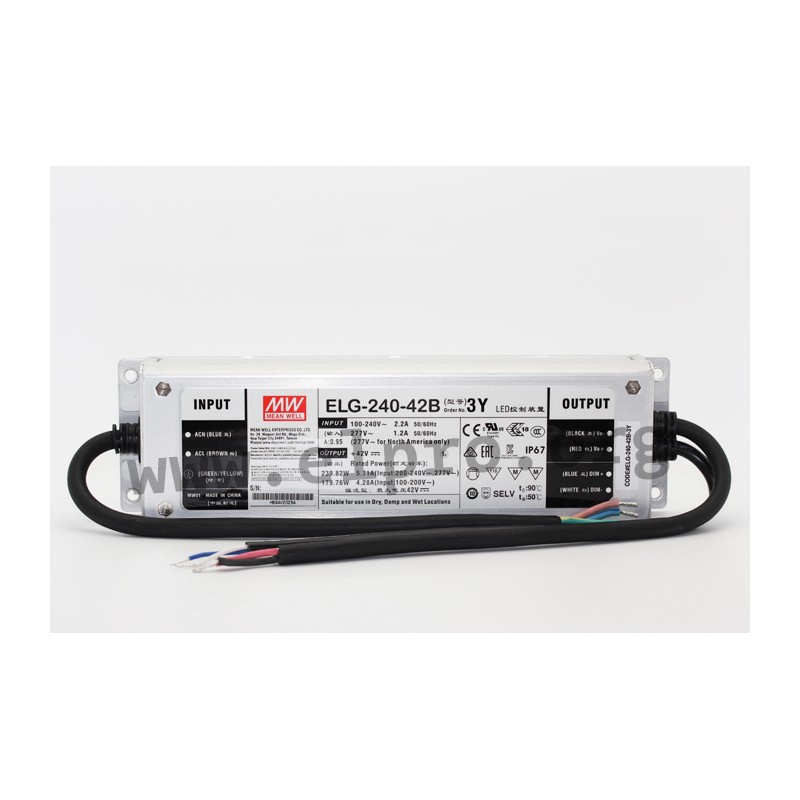

Mean Well LED driver series ELG-240

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer), a constant voltage, a constant current and a protective earth conductor PE. These devices are suitable for LED lighting applications and comply with EN55015, EN61347-1, EN61347-2-13, EN61000-3-2 class C, 6kV surge immunity level, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-240-24B-3Y, ELG-240-36B-3Y, ELG-240-42B-3Y, ELG-240-48B-3Y and ELG-240-54B-3Y.

  • single output
  • output: 239,76 to 240,3W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g
Mean Well ELG-240 series

ELG-240-54B-3Y

109296 ELG-240-54B-3Y ELG-240-54B-3Y 4711287443218 Mean Well LED driver series ELG-240. LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer), a constant voltage, a constant current and a protective earth conductor PE. These devices are suitable for LED lighting applications and comply with EN55015, EN61347-1, EN61347-2-13, EN61000-3-2 class C, 6kV surge immunity level, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-240-24B-3Y, ELG-240-36B-3Y, ELG-240-42B-3Y, ELG-240-48B-3Y and ELG-240-54B-3Y. single output output: 239,76 to 240,3W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-240-54B-3Y
GTIN 4711287443218
Output voltage [V] 54
Efficiency [%] 93
Output current [A] 4,45
Output voltage tolerance: [%] 2
Output power [W] 240,3
Ripple [mVp-p] 350
Data Sheet

Unit price

48,09 €

Volume discounts

Quantity Unit price
50 + 47,09 €

Stock: 35
Further delivery:
CW 16/2025
