ELG-240-48DA-3Y

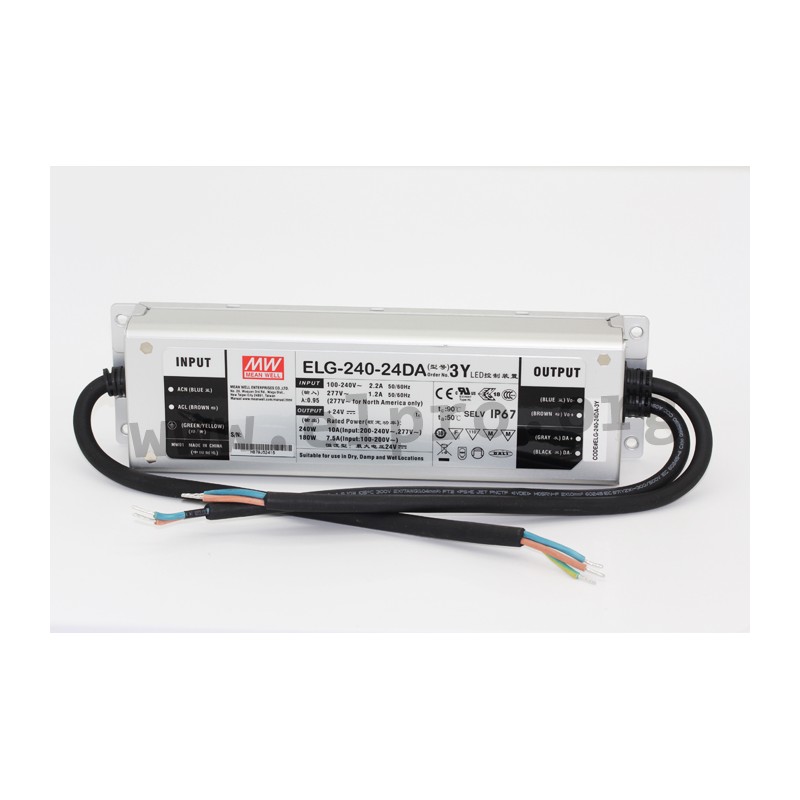

Mean Well LED driver series ELG-240

LED drivers in a metal housing (IP67) with a protective earth conductor PE, a constant voltage, 6kV surge immunity level and a DALI interface. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-2-13, EN61347-1, EN55015, EN61000-3-3, EN61000-3-2 class C as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-240-24DA-3Y, ELG-240-36DA-3Y, ELG-240-42DA-3Y, ELG-240-48DA-3Y and ELG-240-54DA-3Y.

  • single output
  • output: 239,76 to 240,3W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g

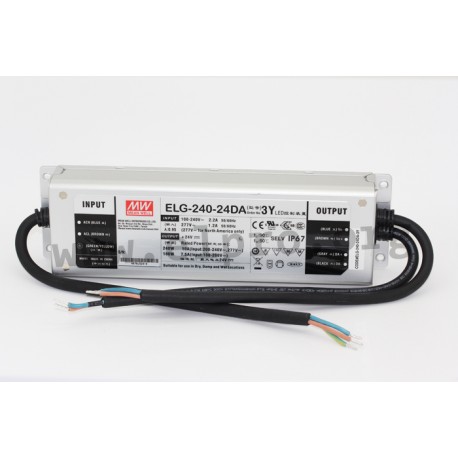

ELG-240-_DA-3Y

ELG-240-48DA-3Y

109294 ELG-240-48DA-3Y ELG-240-48DA-3Y 4711287443133 Mean Well LED driver series ELG-240. LED drivers in a metal housing (IP67) with a protective earth conductor PE, a constant voltage, 6kV surge immunity level and a DALI interface. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with EN61347-2-13, EN61347-1, EN55015, EN61000-3-3, EN61000-3-2 class C as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-240-24DA-3Y, ELG-240-36DA-3Y, ELG-240-42DA-3Y, ELG-240-48DA-3Y and ELG-240-54DA-3Y. single output output: 239,76 to 240,3W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-240-48DA-3Y
GTIN 4711287443133
Output voltage [V] 48
Efficiency [%] 93
Output current [A] 5
Output voltage tolerance: [%] 2
Output power [W] 240
Ripple [mVp-p] 250
Data Sheet

Unit price

45,69 €

Volume discounts

Quantity Unit price
50 + 44,49 €

Stock: 30
Next incoming goods:
CW 03/2025
204 units

Further delivery:
CW 11/2025
