ELG-240-48A-3Y

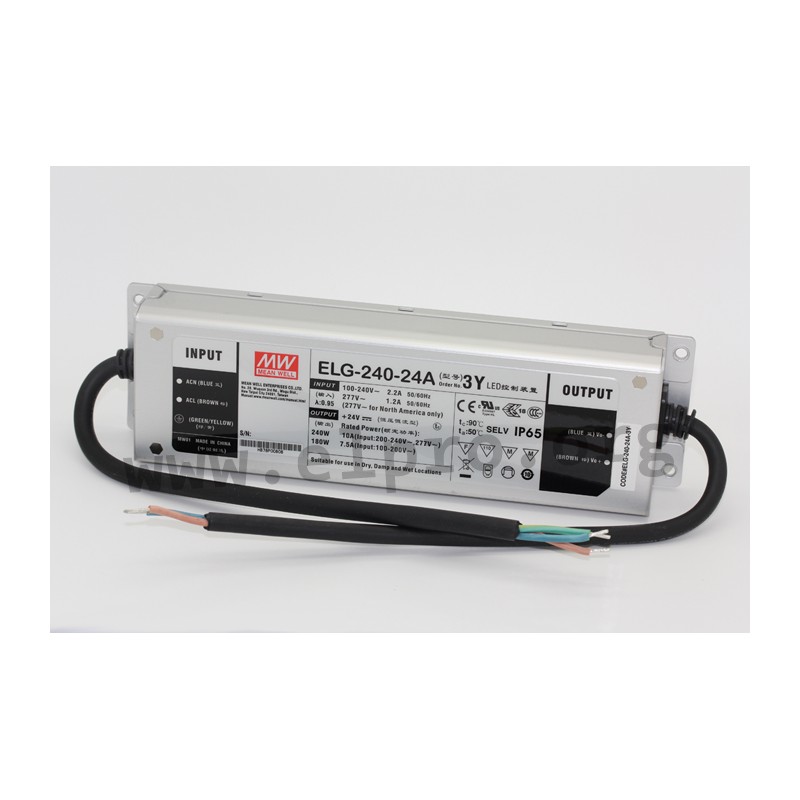

Mean Well LED driver series ELG-240

LED drivers in a metal housing (IP65) with a constant voltage, a constant current, a built-in potentiometer for adjusting the output voltage / current limitation and a protective earth conductor. These devices comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: ELG-240-24A-3Y, ELG-240-36A-3Y, ELG-240-42A-3Y, ELG-240-48A-3Y and ELG-240-54A-3Y.

  • single output
  • output: 239,76 to 240,3W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g
ELG-240-_A-3Y

ELG-240-48A-3Y

109292 ELG-240-48A-3Y ELG-240-48A-3Y 4711287443034 Mean Well LED driver series ELG-240. LED drivers in a metal housing (IP65) with a constant voltage, a constant current, a built-in potentiometer for adjusting the output voltage / current limitation and a protective earth conductor. These devices comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and are not dimmable. We offer the following types of this Mean Well series: ELG-240-24A-3Y, ELG-240-36A-3Y, ELG-240-42A-3Y, ELG-240-48A-3Y and ELG-240-54A-3Y. single output output: 239,76 to 240,3W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-240-48A-3Y
GTIN 4711287443034
Output voltage [V] 48
Efficiency [%] 93
Output current [A] 5
Output voltage tolerance: [%] 2
Output power [W] 240
Ripple [mVp-p] 250
Data Sheet

Unit price

43,99 €

Volume discounts

Quantity Unit price
50 + 42,59 €

Stock: 93
Next incoming goods:
CW 04/2025
108 units

Further delivery:
CW 16/2025
