ELG-240-C2100-3Y

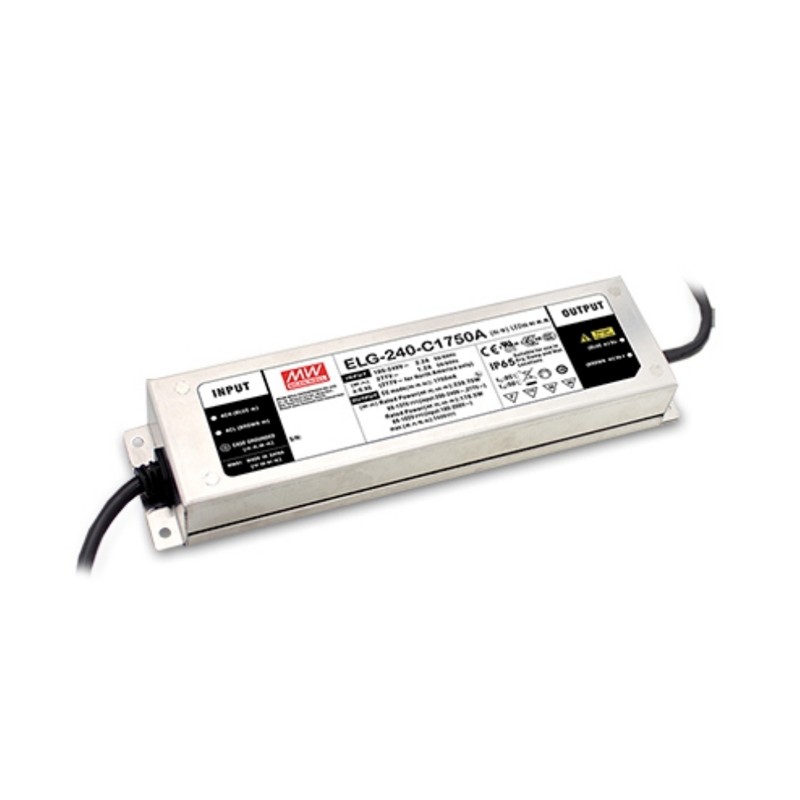

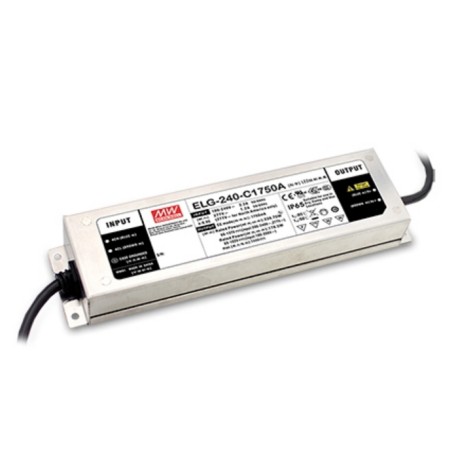

Mean Well LED driver series ELG-240-C

LED drivers in a metal housing (IP67) with 240W, a constant current, a fixed output current and a protective earth conductor (PE). These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-3, EN61547 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: ELG-240-C700-3Y, ELG-240-C1050-3Y, ELG-240-C1400-3Y, ELG-240-C1750-3Y and ELG-240-C2100-3Y.

  • single output
  • output: 239,4 to 241,5W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g
ELG-240-C2100-3Y, Mean Well LED drivers, 240W, IP67, constant current, fixed preset, protective earth conductor, ELG-240-C serie

ELG-240-C2100-3Y

244809 ELG-240-C2100-3Y ELG-240-C2100-3Y 4711287446769 Mean Well LED driver series ELG-240-C. LED drivers in a metal housing (IP67) with 240W, a constant current, a fixed output current and a protective earth conductor (PE). These devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications, are not dimmable and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-3, EN61547 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: ELG-240-C700-3Y, ELG-240-C1050-3Y, ELG-240-C1400-3Y, ELG-240-C1750-3Y and ELG-240-C2100-3Y. single output output: 239,4 to 241,5W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-240-C2100-3Y
GTIN 4711287446769
Output voltage [V] 57...115
Output current tolerance [%] 5
Output current [mA] 2100
Efficiency [%] 93
Output power [W] 241,5
Data Sheet

Unit price

45,99 €

Stock: 0
Further delivery:
CW 16/2025
