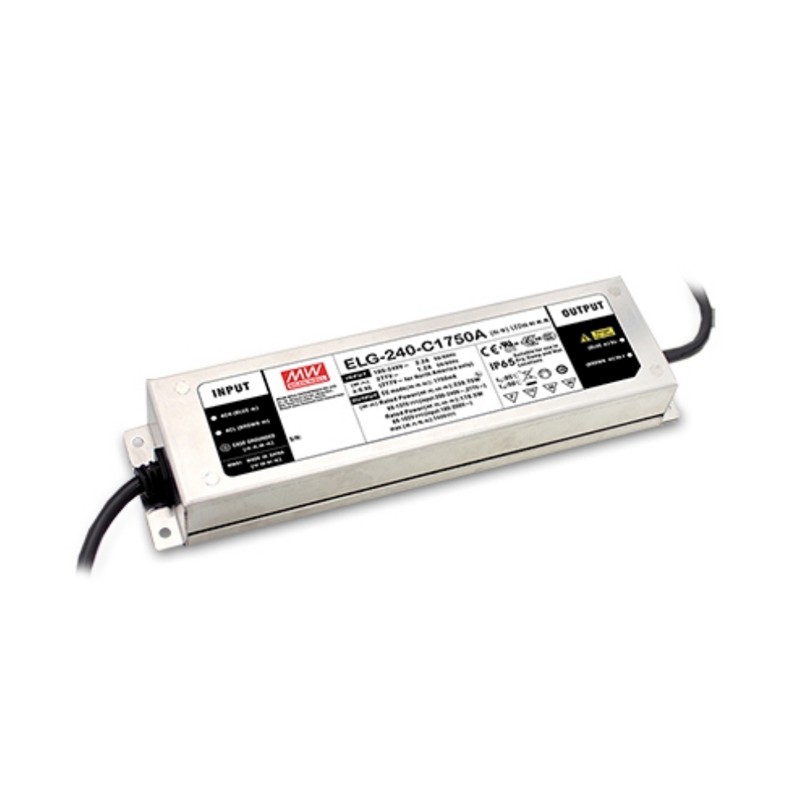

ELG-240-C1750D2-3Y

Mean Well LED driver series ELG-240-C

LED drivers in a metal housing (IP67) with 240W, a constant current, a smart timer dimming function and a protective earth conductor (PE). These devices have a built-in active PFC function, a programmable output and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-3 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: ELG-240-C700D2-3Y, ELG-240-C1050D2-3Y, ELG-240-C1400D2-3Y, ELG-240-C1750D2-3Y and ELG-240-C2100D2-3Y.

  • single output
  • output: 239,4 to 241,5W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g

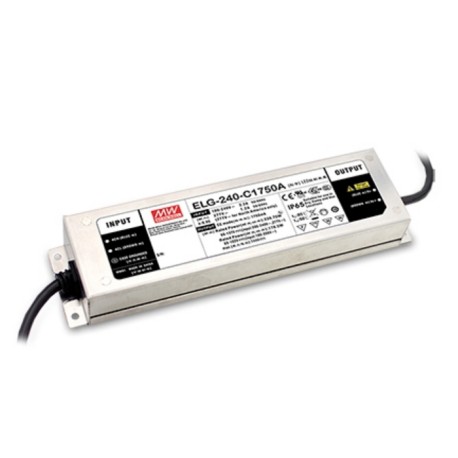

ELG-240-C1750D2-3Y, Mean Well LED drivers, 240W, IP67, constant current, smart timer dimming, protective earth conductor (PE), E

ELG-240-C1750D2-3Y

244808 ELG-240-C1750D2-3Y ELG-240-C1750D2-3Y Mean Well LED driver series ELG-240-C. LED drivers in a metal housing (IP67) with 240W, a constant current, a smart timer dimming function and a protective earth conductor (PE). These devices have a built-in active PFC function, a programmable output and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. They are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-3 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: ELG-240-C700D2-3Y, ELG-240-C1050D2-3Y, ELG-240-C1400D2-3Y, ELG-240-C1750D2-3Y and ELG-240-C2100D2-3Y. single output output: 239,4 to 241,5W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-240-C1750D2-3Y
Output voltage [V] 69...137
Output current tolerance [%] 5
Output current [mA] 1750
Efficiency [%] 93
Output power [W] 239,75
Data Sheet

Unit price

54,99 €

Stock: 0
Further delivery:
CW 11/2025
