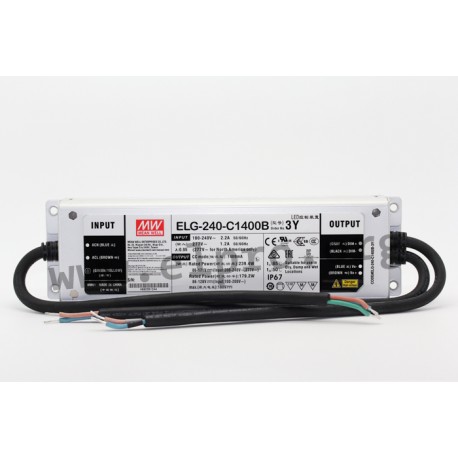

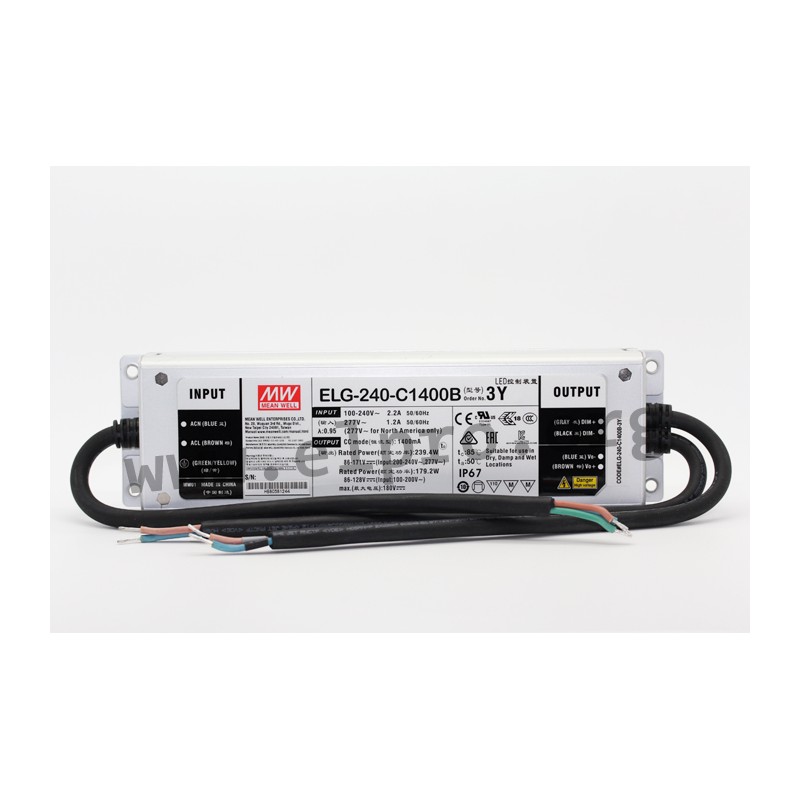

ELG-240-C1400B-3Y

Mean Well LED driver series ELG-240-C

LED drivers in a metal case (IP67) with a constant current, 240W and a protective conductor PE (three wire primary cable). These SELV compliant devices are suitable for LED lighting applications, have a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) through an executed control line and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. We offer the following types of this Mean Well series: ELG-240-C700B-3Y, ELG-240-C1050B-3Y, ELG-240-C1400B-3Y, ELG-240-C1750B-3Y and ELG-240-C2100B-3Y.

  • single output
  • output: 239,4 to 241,5W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 75A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 1220g
ELG-240-C1400B-3Y

ELG-240-C1400B-3Y

109324 ELG-240-C1400B-3Y ELG-240-C1400B-3Y 4711287446509 Mean Well LED driver series ELG-240-C. LED drivers in a metal case (IP67) with a constant current, 240W and a protective conductor PE (three wire primary cable). These SELV compliant devices are suitable for LED lighting applications, have a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) through an executed control line and are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature. We offer the following types of this Mean Well series: ELG-240-C700B-3Y, ELG-240-C1050B-3Y, ELG-240-C1400B-3Y, ELG-240-C1750B-3Y and ELG-240-C2100B-3Y. single output output: 239,4 to 241,5W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 75A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-240-C1400B-3Y
GTIN 4711287446509
Output voltage [V] 86...171
Output current tolerance [%] 5
Efficiency [%] 93
Output power [W] 239,4
Output current [mA] 1400
Data Sheet

Unit price

45,89 €

Volume discounts

Quantity Unit price
50 + 44,39 €

Stock: 84
Further delivery:
CW 16/2025
