ELG-200-12AB-3Y

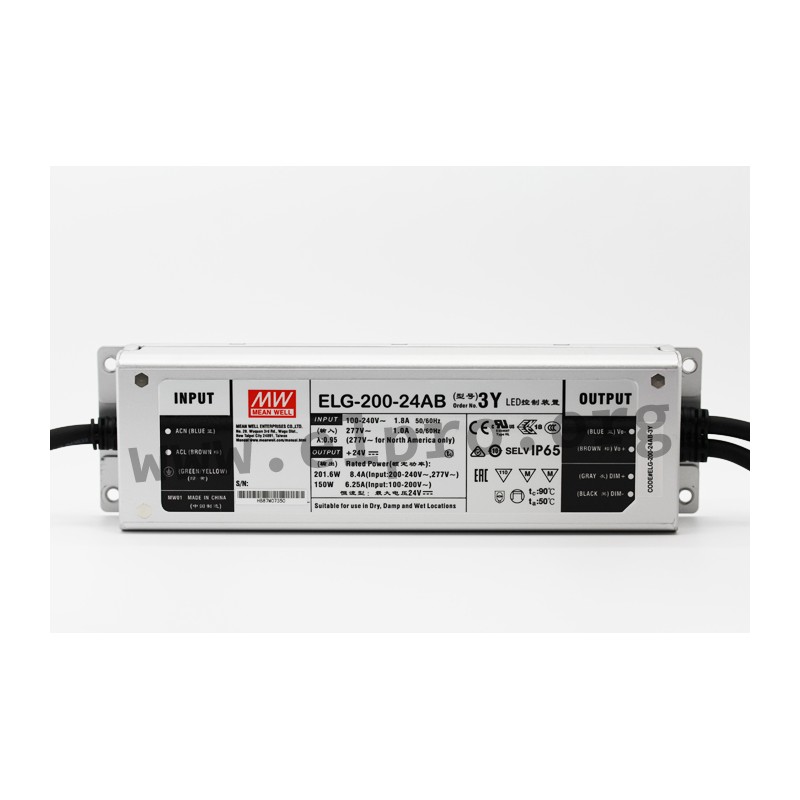

Mean Well LED driver series ELG-200

LED drivers in a metal housing (IP65) with a constant voltage, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer), a protective earth conductor PE and a constant current. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the current limitation / output voltage as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: ELG-200-12AB-3Y, ELG-200-24AB-3Y, ELG-200-36AB-3Y, ELG-200-42AB-3Y, ELG-200-48AB-3Y and ELG-200-54AB-3Y.

  • single output
  • power: 192 to 200,88W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • overcurrent protection: 95 to 108%
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 1220g

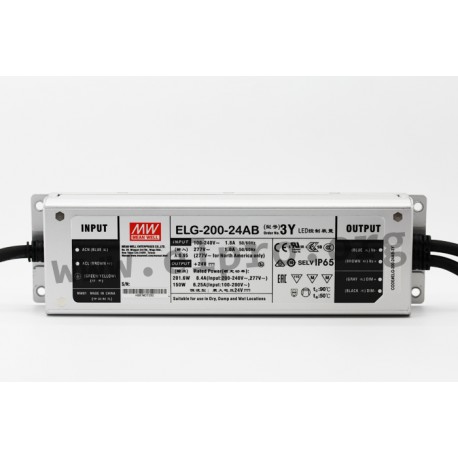

Mean Well ELG-200-_AB-3Y series

ELG-200-12AB-3Y

113239 ELG-200-12AB-3Y ELG-200-12AB-3Y 4711287441917 Mean Well LED driver series ELG-200. LED drivers in a metal housing (IP65) with a constant voltage, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer), a protective earth conductor PE and a constant current. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the current limitation / output voltage as well as a built-in active PFC function and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: ELG-200-12AB-3Y, ELG-200-24AB-3Y, ELG-200-36AB-3Y, ELG-200-42AB-3Y, ELG-200-48AB-3Y and ELG-200-54AB-3Y. single output power: 192 to 200,88W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W overcurrent protection: 95 to 108% withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-200-12AB-3Y
GTIN 4711287441917
Output voltage [V] 12
Efficiency [%] 90
Output current [A] 16
Output voltage tolerance: [%] 3
Output power [W] 192
Ripple [mVp-p] 150
Data Sheet

Unit price

43,99 €

Volume discounts

Quantity Unit price
50 + 42,59 €

Stock: 56
Further delivery:
CW 12/2025
