ELG-200-54B-3Y

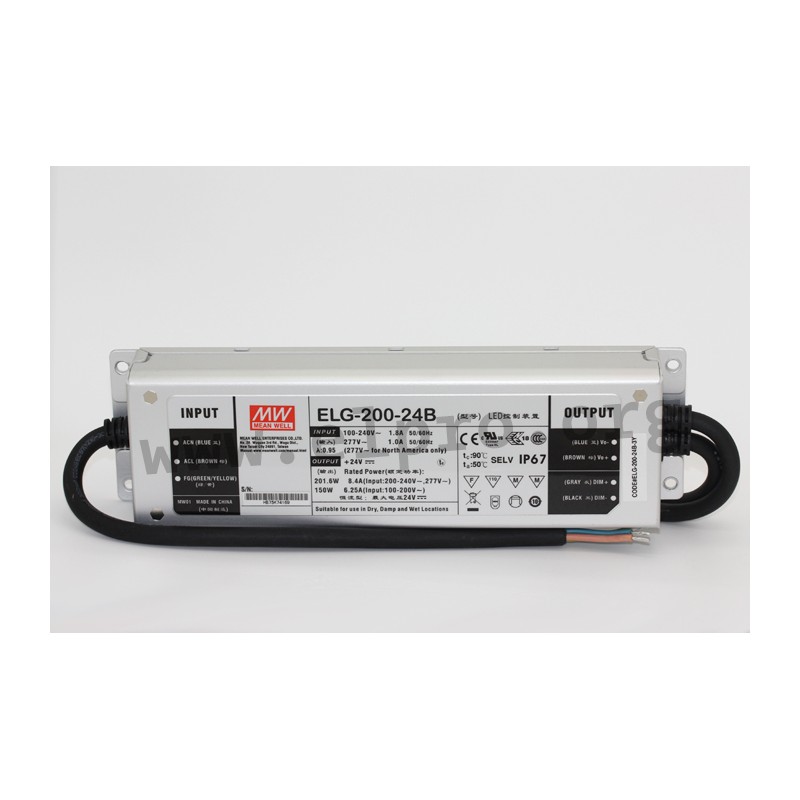

Mean Well LED driver series ELG-200

LED drivers in a metal housing (IP67) with a constant voltage, a constant current, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a protective earth conductor PE. These devices are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit and comply with 6kV surge immunity level, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-200-12B-3Y, ELG-200-24B-3Y, ELG-200-36B-3Y, ELG-200-42B-3Y, ELG-200-48B-3Y and ELG-200-54B-3Y.

  • single output
  • output: 192 to 201,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: 244x71x37,5mm
  • weight: 1220g

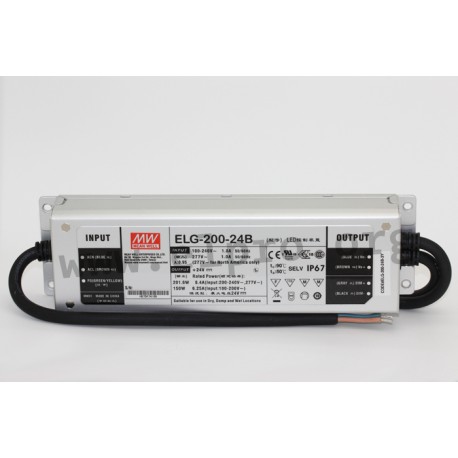

Mean Well ELG-200-_B-3Y series

ELG-200-54B-3Y

109279 ELG-200-54B-3Y ELG-200-54B-3Y 4711287442532 Mean Well LED driver series ELG-200. LED drivers in a metal housing (IP67) with a constant voltage, a constant current, a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer) and a protective earth conductor PE. These devices are protected against overload (auto recovery), overvoltage, overtemperature as well as short circuit and comply with 6kV surge immunity level, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-200-12B-3Y, ELG-200-24B-3Y, ELG-200-36B-3Y, ELG-200-42B-3Y, ELG-200-48B-3Y and ELG-200-54B-3Y. single output output: 192 to 201,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-200-54B-3Y
GTIN 4711287442532
Output voltage [V] 54
Efficiency [%] 93
Output current [A] 3,72
Output voltage tolerance: [%] 2
Output power [W] 200,88
Ripple [mVp-p] 350
Data Sheet

Unit price

45,29 €

Volume discounts

Quantity Unit price
50 + 44,39 €

Stock: 4
Further delivery:
CW 11/2025
