ELG-200-36A-3Y

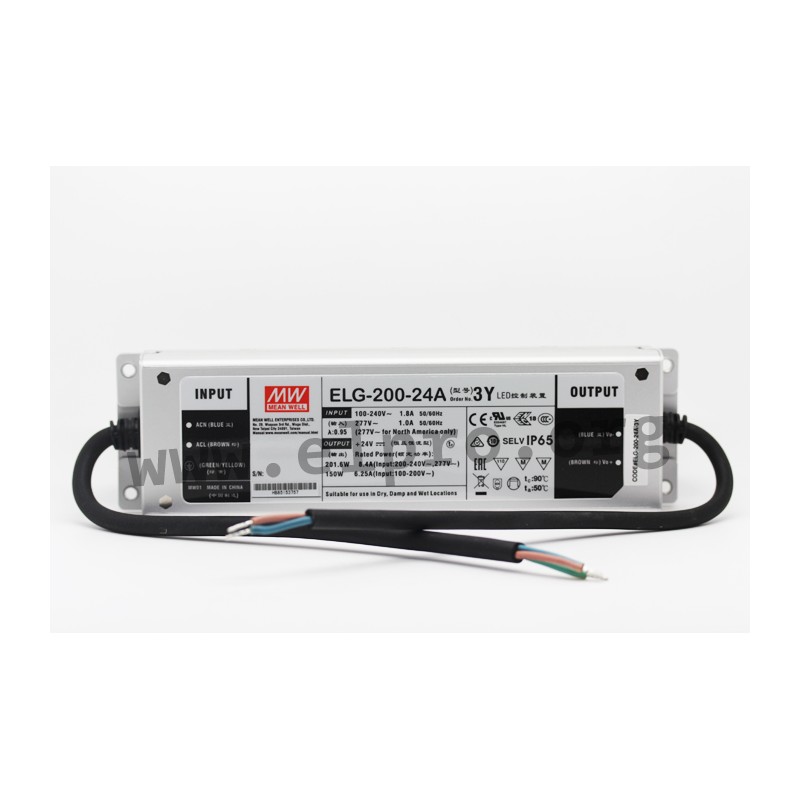

Mean Well LED driver series ELG-200

LED drivers in a metal housing (IP65) with a constant current, 200W, a constant voltage and a protective earth conductor PE. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with 6kV surge immunity level, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function and are not dimmable. We offer the following types of this Mean Well series: ELG-200-12A-3Y, ELG-200-24A-3Y, ELG-200-36A-3Y, ELG-200-42A-3Y, ELG-200-48A-3Y and ELG-200-54A-3Y.

  • single output
  • output: 192 to 201,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g

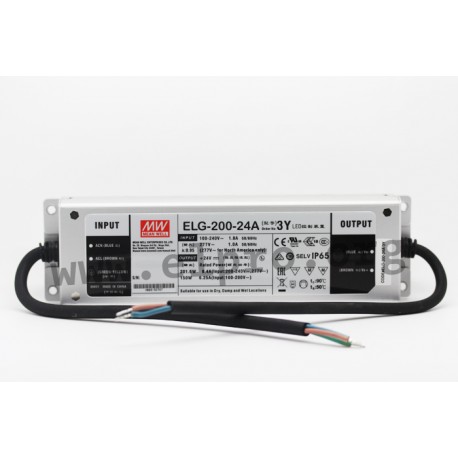

Mean Well ELG-200 series

ELG-200-36A-3Y

109269 ELG-200-36A-3Y ELG-200-36A-3Y 4711287442136 Mean Well LED driver series ELG-200. LED drivers in a metal housing (IP65) with a constant current, 200W, a constant voltage and a protective earth conductor PE. These devices are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and comply with 6kV surge immunity level, EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function and are not dimmable. We offer the following types of this Mean Well series: ELG-200-12A-3Y, ELG-200-24A-3Y, ELG-200-36A-3Y, ELG-200-42A-3Y, ELG-200-48A-3Y and ELG-200-54A-3Y. single output output: 192 to 201,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-200-36A-3Y
GTIN 4711287442136
Output voltage [V] 36
Efficiency [%] 92
Output current [A] 5,55
Output voltage tolerance: [%] 2
Output power [W] 199,8
Ripple [mVp-p] 250
Data Sheet

Unit price

41,49 €

Volume discounts

Quantity Unit price
50 + 40,09 €

Stock: 68
Further delivery:
CW 12/2025
