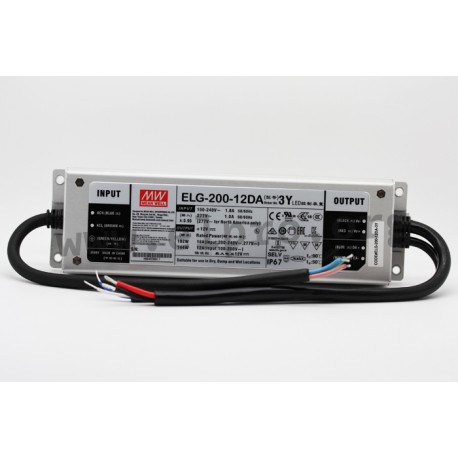

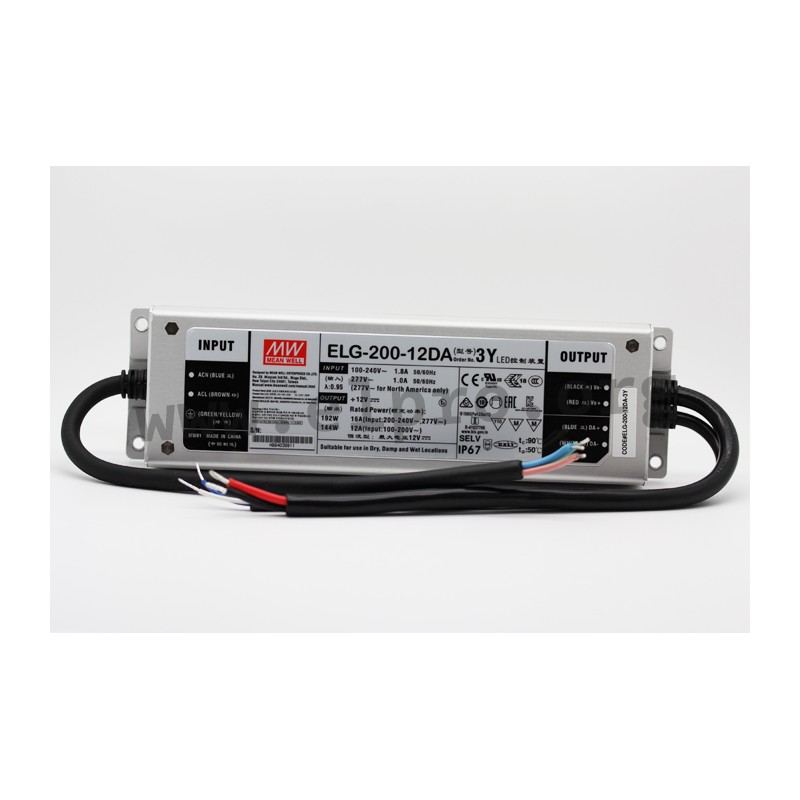

ELG-200-12DA-3Y

Mean Well LED driver series ELG-200

LED drivers in a metal housing (IP67) with a constant voltage, a constant current, a DALI interface and a protective earth conductor PE. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-200-12DA-3Y, ELG-200-24DA-3Y, ELG-200-36DA-3Y, ELG-200-42DA-3Y, ELG-200-48DA-3Y and ELG-200-54DA-3Y.

  • single output
  • output: 192 to 201,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g
ELG-200-12DA-3Y

ELG-200-12DA-3Y

109263 ELG-200-12DA-3Y ELG-200-12DA-3Y 4711287441979 Mean Well LED driver series ELG-200. LED drivers in a metal housing (IP67) with a constant voltage, a constant current, a DALI interface and a protective earth conductor PE. These SELV compliant devices are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-200-12DA-3Y, ELG-200-24DA-3Y, ELG-200-36DA-3Y, ELG-200-42DA-3Y, ELG-200-48DA-3Y and ELG-200-54DA-3Y. single output output: 192 to 201,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-200-12DA-3Y
GTIN 4711287441979
Output voltage [V] 12
Efficiency [%] 90
Output current [A] 16
Output voltage tolerance: [%] 3
Output power [W] 192
Ripple [mVp-p] 150
Data Sheet

Unit price

43,19 €

Volume discounts

Quantity Unit price
50 + 42,09 €

Stock: 323
