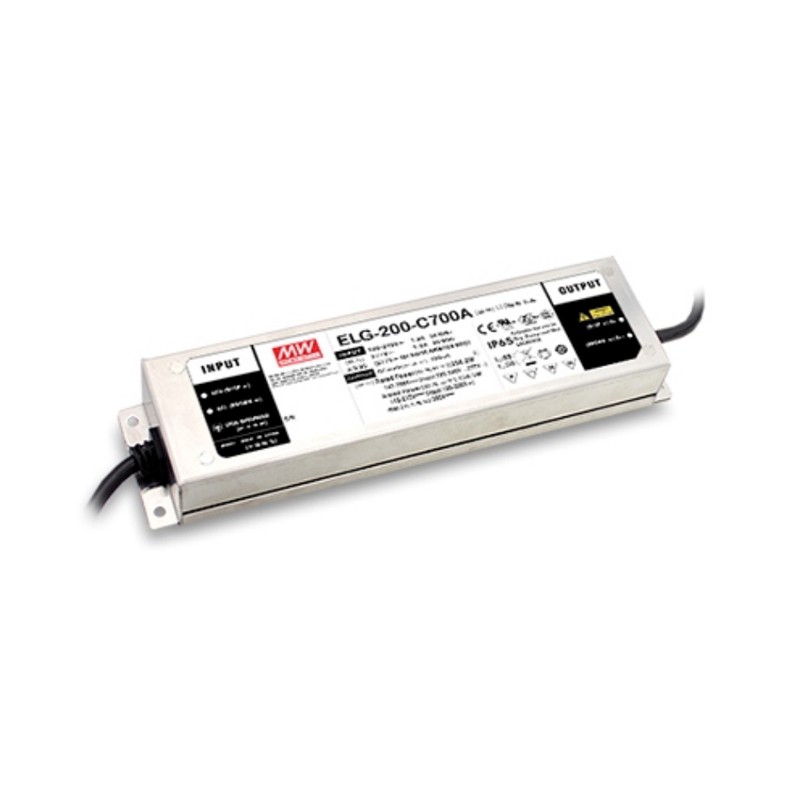

ELG-200-C1050AB-3Y

Mean Well LED driver series ELG-200-C

LED drivers in a metal housing (IP65) with 200W, a constant current, a protective earth conductor (PE), a 3 in 1 dimming function and a potentiometer for adjusting the current limit. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They are suitable for LED lighting applications and comply with EN55015, EN61347-1, EN61347-2-13, EN61000-3-2 class C, EN61547 as well as EN61000-3-3. We offer the following types of this Mean Well series: ELG-200-C700AB-3Y, ELG-200-C1050AB-3Y, ELG-200-C1400AB-3Y, ELG-200-C1750AB-3Y and ELG-200-C2100AB-3Y.

  • single output
  • output: 198,8 to 201,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • dimensions: 244x71x37,5mm
  • weight: 1220g

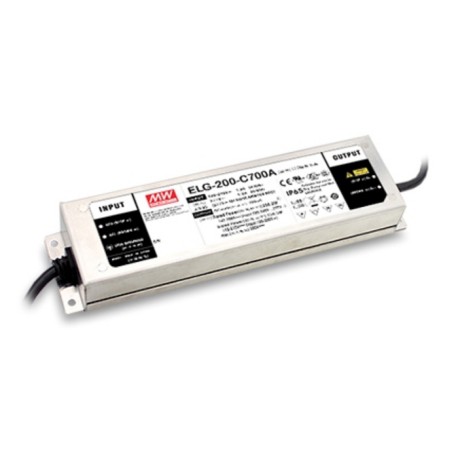

ELG-200-C1050AB-3Y, Mean Well LED drivers, 200W, IP65, constant current, dimmable, adjustable, protective earth conductor (PE),

ELG-200-C1050AB-3Y

244767 ELG-200-C1050AB-3Y ELG-200-C1050AB-3Y Mean Well LED driver series ELG-200-C. LED drivers in a metal housing (IP65) with 200W, a constant current, a protective earth conductor (PE), a 3 in 1 dimming function and a potentiometer for adjusting&nbsp;the current&nbsp;limit. These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage. They are suitable for LED lighting&nbsp;applications and comply with EN55015, EN61347-1,&nbsp;EN61347-2-13, EN61000-3-2 class C, EN61547 as well as EN61000-3-3. We offer the following types of this Mean Well&nbsp;series:&nbsp;ELG-200-C700AB-3Y, ELG-200-C1050AB-3Y, ELG-200-C1400AB-3Y, ELG-200-C1750AB-3Y and ELG-200-C2100AB-3Y. single output output: 198,8 to 201,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85&deg;C dimensions: 244x71x37,5mm weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-200-C1050AB-3Y
Output voltage [V] 95...190
Output current tolerance [%] 5
Output current [mA] 1050
Efficiency [%] 93
Output power [W] 199,5
Data Sheet

Unit price

45,99 €

Stock: 0
Further delivery:
CW 16/2025
