ELG-200-C2100A-3Y

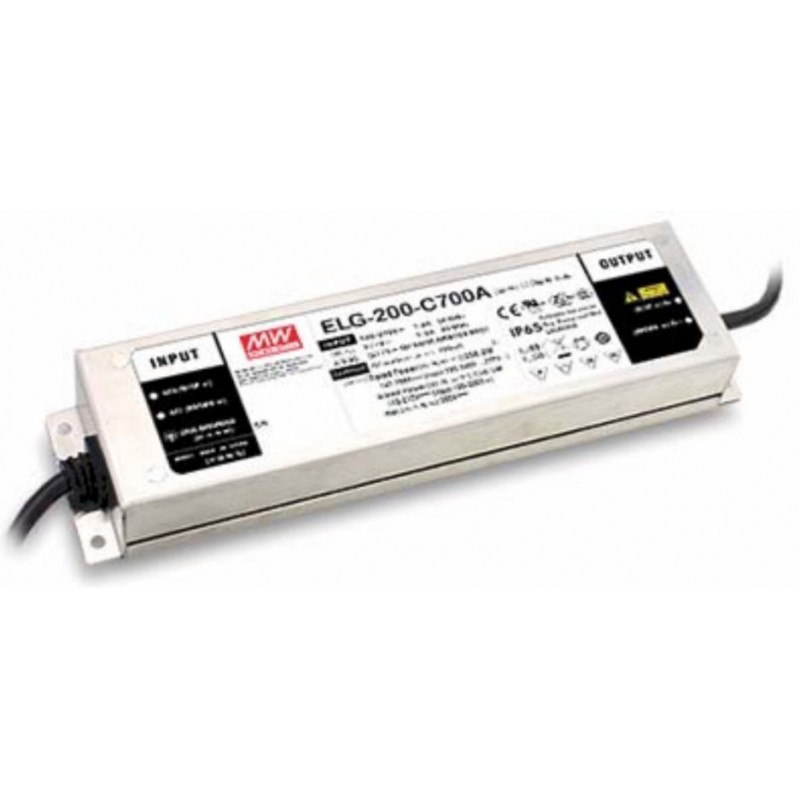

Mean Well LED driver series ELG-200-C

LED drivers in a metal case (IP65) with a 6kV surge immunity level, a protective earth conductor (PE), a wide input range and a constant current. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are protected against short circuit, overtemperature, overload (auto recovery) as well as overvoltage and have a built-in active PFC function. The output current is adjustable through a potentiometer on the bottom side of the case. We offer the following types of this Mean Well series: ELG-200-C700A-3Y, ELG-200-C1050A-3Y, ELG-200-C1400A-3Y, ELG-200-C1750A-3Y and ELG-200-C2100A-3Y.

  • single output
  • output: 199,5 to 201,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 1220g
ELG-200-C2100A-3Y, Mean Well LED power supplies, 200W, IP65, constant current, protective earth conductor PE, ELG-200-C series

ELG-200-C2100A-3Y

123333 ELG-200-C2100A-3Y ELG-200-C2100A-3Y 4711287446028 Mean Well LED driver series ELG-200-C. LED drivers in a metal case (IP65) with a 6kV surge immunity level, a protective earth conductor (PE), a wide input range and a constant current. These SELV compliant devices are suitable for LED lighting applications and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. They are protected against short circuit, overtemperature, overload (auto recovery) as well as overvoltage and have a built-in active PFC function. The output current is adjustable through a potentiometer on the bottom side of the case. We offer the following types of this Mean Well series: ELG-200-C700A-3Y, ELG-200-C1050A-3Y, ELG-200-C1400A-3Y, ELG-200-C1750A-3Y and ELG-200-C2100A-3Y. single output output: 199,5 to 201,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-200-C2100A-3Y
GTIN 4711287446028
Output current tolerance [%] 5
Efficiency [%] 92
Output power [W] 201,6
Output current [mA] 2100
Output voltage range [V] 48...96
Data Sheet

Unit price

43,49 €

Volume discounts

Quantity Unit price
50 + 42,59 €

Stock: 0
Next incoming goods:
CW 03/2025
12 units

Further delivery:
CW 16/2025
