ELG-200-C700DA-3Y

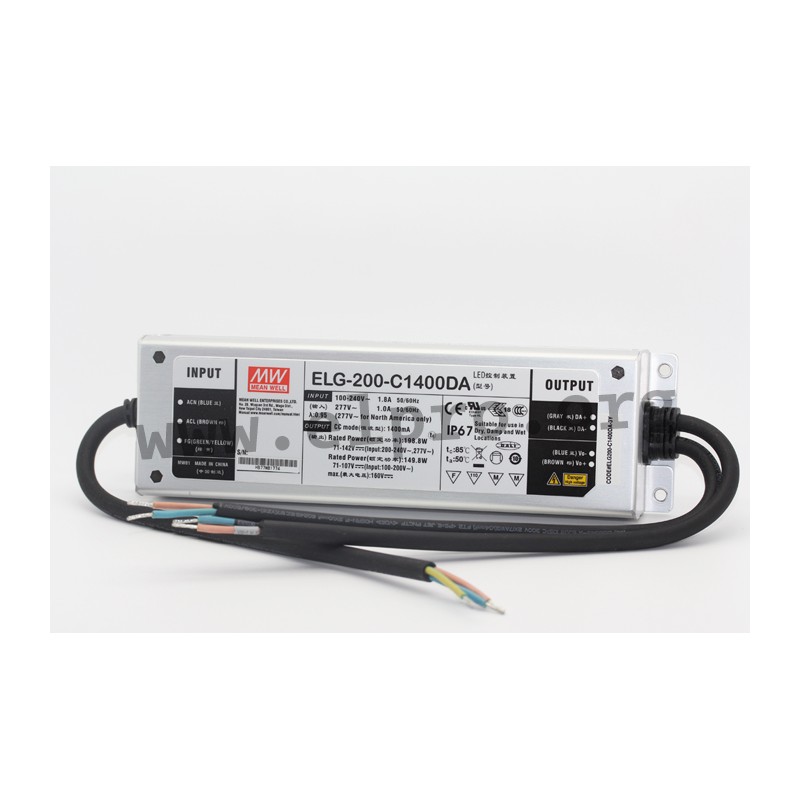

Mean Well LED driver series ELG-200-C

LED drivers in a metal case (IP67) with a constant current, a protective conductor PE (three wire primary cable) and 200W. These devices are protected against short circuit, overload (auto recovery), overvoltage and overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level. They are suitable for LED lighting applications and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-200-C700DA-3Y, ELG-200-C1050DA-3Y, ELG-200-C1400DA-3Y, ELG-200-C1750DA-3Y and ELG-200-C2100DA-3Y.

  • single output
  • output: 198,8 to 201,6W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +85°C
  • weight: 1220g

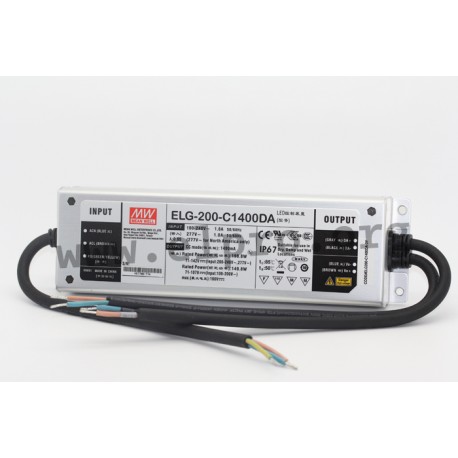

ELG-200-C700DA-3Y, Mean Well LED switching power supplies, 200W, IP67, constant current, DALI interface, with protective earth P

ELG-200-C700DA-3Y

123327 ELG-200-C700DA-3Y ELG-200-C700DA-3Y 4711287446264 Mean Well LED driver series ELG-200-C. LED drivers in a metal case (IP67) with a constant current, a protective conductor PE (three wire primary cable) and 200W. These devices are protected against short circuit, overload (auto recovery), overvoltage and overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level. They are suitable for LED lighting applications and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-200-C700DA-3Y, ELG-200-C1050DA-3Y, ELG-200-C1400DA-3Y, ELG-200-C1750DA-3Y and ELG-200-C2100DA-3Y. single output output: 198,8 to 201,6W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +85°C weight: 1220g

Specifications

manufacturer
Manufacturer's name ELG-200-C700DA-3Y
GTIN 4711287446264
Output voltage [V] 142...286
Output current tolerance [%] 5
Efficiency [%] 93
Output power [W] 200,2
Output current [mA] 700
Data Sheet

Unit price

46,69 €

Volume discounts

Quantity Unit price
50 + 45,19 €

Stock: 0
Next incoming goods:
CW 03/2025
44 units

Further delivery:
CW 11/2025
