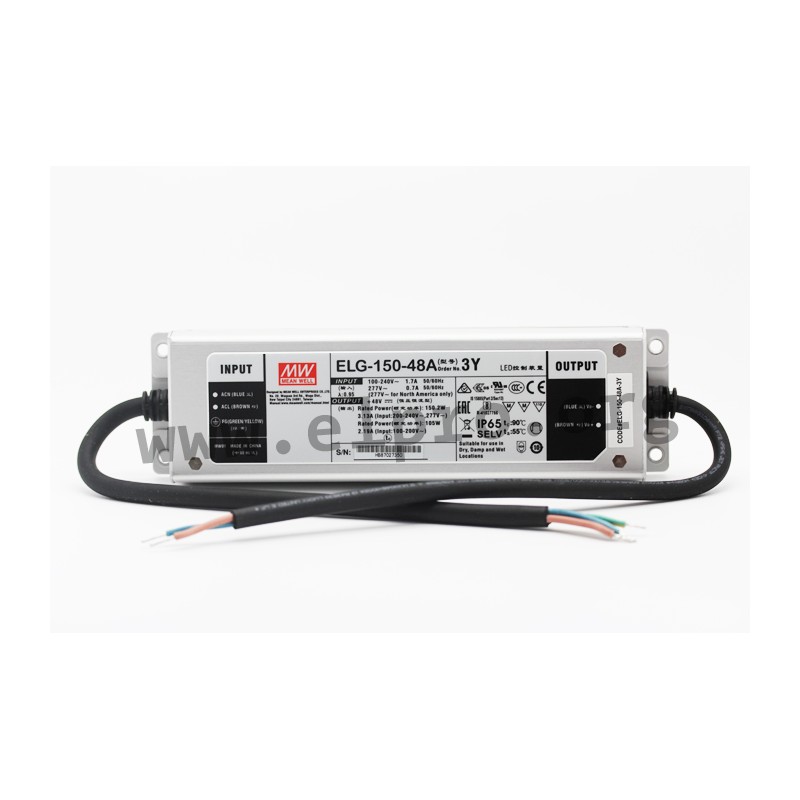

ELG-150-36A-3Y

Mean Well LED driver series ELG-150

LED drivers in a metal housing (IP65) with a constant voltage, 150W and a protective earth conductor (PE). These devices are not dimmable, have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-150-12A-3Y, ELG-150-24A-3Y, ELG-150-36A-3Y, ELG-150-42A-3Y, ELG-150-82A-3Y and ELG-150-54A-3Y.

  • single output
  • output: 120 to 151,2W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 950g
Mean Well ELG-150-_A-3Y series

ELG-150-36A-3Y

109247 ELG-150-36A-3Y ELG-150-36A-3Y 4711287441290 Mean Well LED driver series ELG-150. LED drivers in a metal housing (IP65) with a constant voltage, 150W and a protective earth conductor (PE). These devices are not dimmable, have a built-in potentiometer for adjusting the output voltage / current limitation as well as a built-in active PFC function and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They are protected against overload (auto recovery), short circuit, overtemperature as well as overvoltage and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-150-12A-3Y, ELG-150-24A-3Y, ELG-150-36A-3Y, ELG-150-42A-3Y, ELG-150-82A-3Y and ELG-150-54A-3Y. single output output: 120 to 151,2W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 219x63x35,5mm weight: 950g

Specifications

manufacturer
Manufacturer's name ELG-150-36A-3Y
GTIN 4711287441290
Output voltage [V] 36
Efficiency [%] 90
Output current [A] 4,17
Output voltage tolerance: [%] 2,5
Output power [W] 150,1
Ripple [mVp-p] 250
Data Sheet

Unit price

33,69 €

Volume discounts

Quantity Unit price
50 + 32,59 €

Stock: 36
