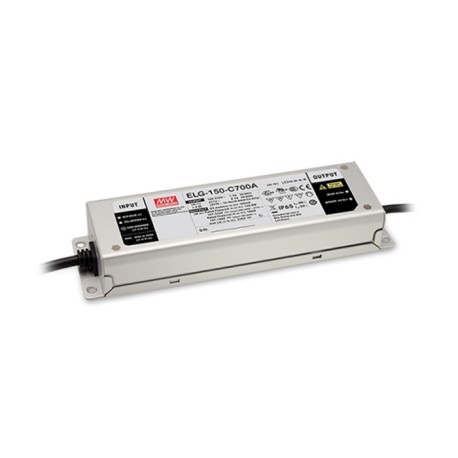

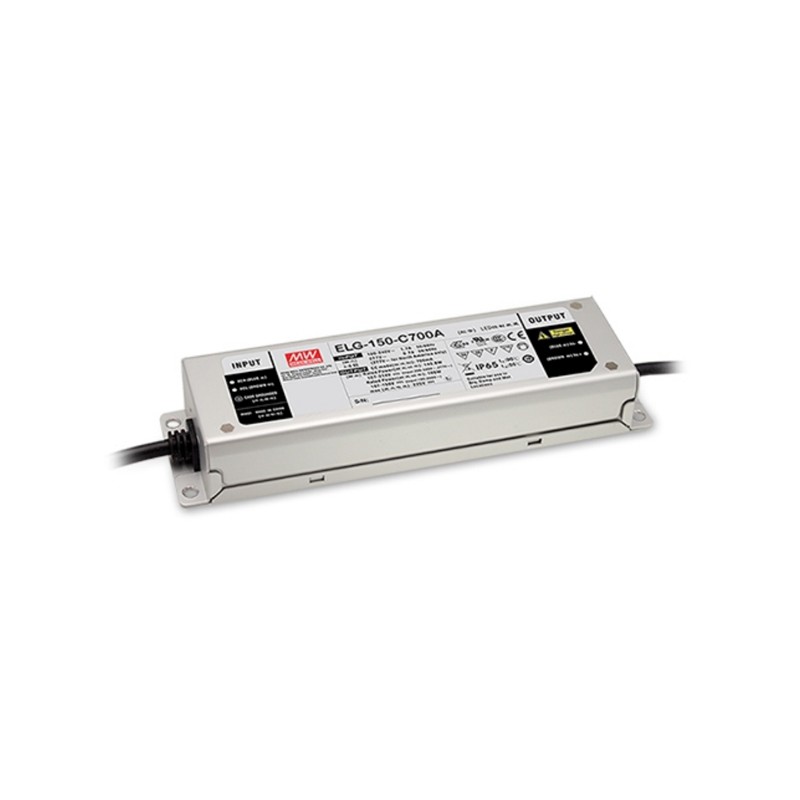

ELG-150-C2100-3Y

Mean Well LED driver series ELG-150-C

LED drivers in a metal housing (IP67) with 150W, a constant current and a protective earth conductor (PE). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They are suitable for LED lighting applications, have a fixed output current and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series: ELG-150-C500-3Y, ELG-150-C700-3Y, ELG-150-C1050-3Y, ELG-150-C1400-3Y, ELG-150-C1750-3Y and ELG-150-C2100-3Y.

  • single output
  • output: 149,8 to 151,2W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 950g
ELG-150-C2100-3Y, Mean Well LED drivers, 150W, IP67, constant current, fixed preset, protective earth conductor (PE), ELG-150-C

ELG-150-C2100-3Y

244753 ELG-150-C2100-3Y ELG-150-C2100-3Y 4711287445106 Mean Well LED driver series ELG-150-C. LED drivers in a metal&nbsp;housing (IP67) with 150W, a constant current and a protective earth conductor (PE). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery),&nbsp;overtemperature, overvoltage as well as short circuit. They are suitable for LED&nbsp;lighting applications, have a fixed output current and comply with&nbsp;EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547. We offer the following types of this Mean Well series:&nbsp;ELG-150-C500-3Y, ELG-150-C700-3Y, ELG-150-C1050-3Y, ELG-150-C1400-3Y, ELG-150-C1750-3Y and ELG-150-C2100-3Y. single output output: 149,8 to 151,2W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A no-load power: &lt;0,5W withstand voltage&nbsp;I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90&deg;C dimensions: 219x63x35,5mm weight: 950g

Specifications

manufacturer
Manufacturer's name ELG-150-C2100-3Y
GTIN 4711287445106
Output voltage [V] 36...72
Output current tolerance [%] 5
Output current [mA] 2100
Efficiency [%] 91
Output power [W] 151,2
Data Sheet

Unit price

35,19 €

Stock: 0
Further delivery:
CW 12/2025
