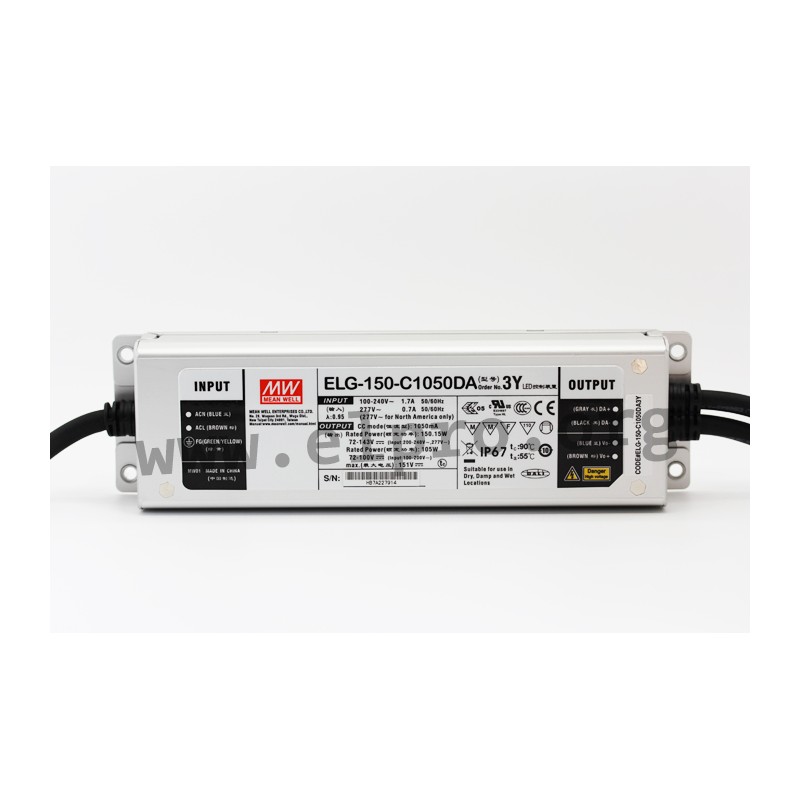

ELG-150-C2100DA-3Y

Mean Well LED driver series ELG-150-C

LED drivers in a metal case (IP67) with a constant current, 150W and a DALI interface. These devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 and a 6kV surge immunity level. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-150-C500DA-3Y, ELG-150-C700DA-3Y, ELG-150-C1050DA-3Y, ELG-150-C1400DA-3Y, ELG-150-C1750DA-3Y and ELG-150-C2100DA-3Y.

  • single output
  • output: 149,8 to 151,2W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 950g

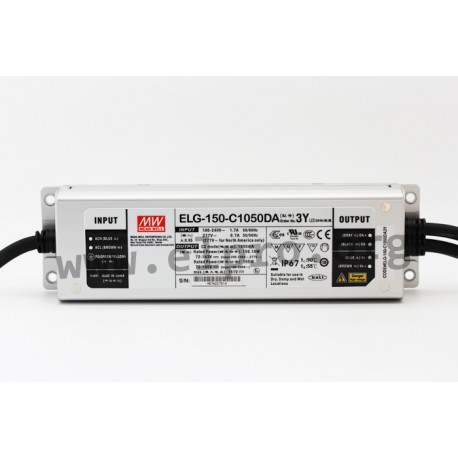

ELG-150-C2100DA-3Y, Mean Well LED switching power supplies, 150W, IP67, constant current, DALI interface, protective earth PE,

ELG-150-C2100DA-3Y

123319 ELG-150-C2100DA-3Y ELG-150-C2100DA-3Y Mean Well LED driver series ELG-150-C. LED drivers in a metal case (IP67) with a constant current, 150W and a DALI interface. These devices are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 and a 6kV surge immunity level. They are suitable for LED lighting applications and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-150-C500DA-3Y, ELG-150-C700DA-3Y, ELG-150-C1050DA-3Y, ELG-150-C1400DA-3Y, ELG-150-C1750DA-3Y and ELG-150-C2100DA-3Y. single output output: 149,8 to 151,2W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 950g

Specifications

manufacturer
Manufacturer's name ELG-150-C2100DA-3Y
Output voltage [V] 36...72
Output current tolerance [%] 5
Efficiency [%] 91
Output power [W] 151,2
Output current [mA] 2100
