ELG-150-C1750A-3Y

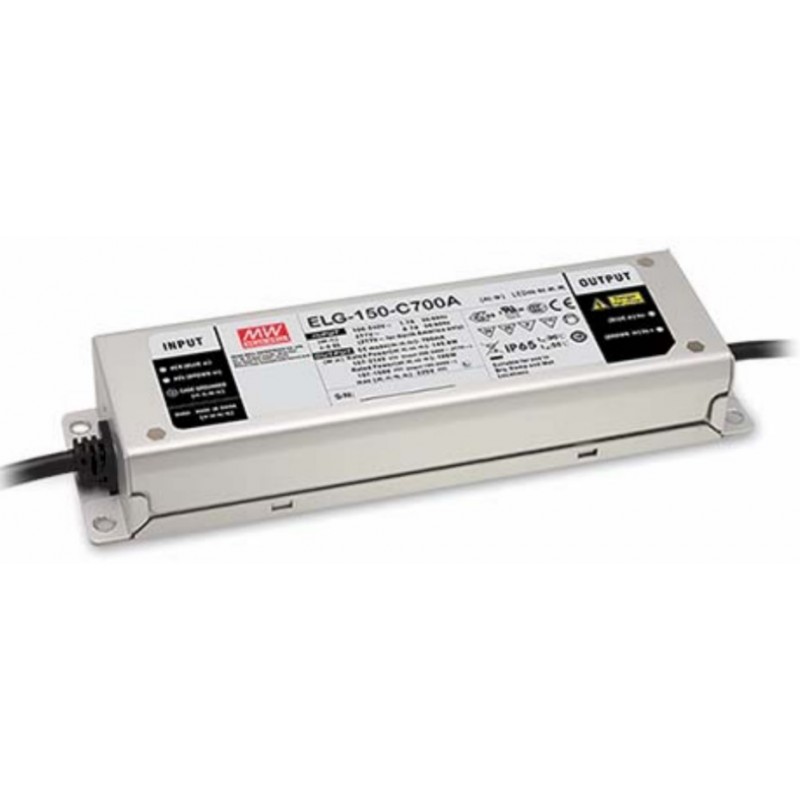

Mean Well LED driver series ELG-150-C

LED drivers in a metal housing (IP65) with a constant current, 150W and a protective earth conductor PE. These devices are suitable for LED lighting applications, are not dimmable and have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function. They comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: ELG-150-C500A-3Y, ELG-150-C700A-3Y, ELG-150-C1050A-3Y, ELG-150-C1400A-3Y, ELG-150-C1750A-3Y and ELG-150-C2100A-3Y.

  • single output
  • output: 149,8 to 151,2W
  • input voltage: 105 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 65A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 219x63x35,5mm
  • weight: 950g
ELG-150-C1750A-3Y, Mean Well LED power supplies, 150W, IP65, constant current, protective conductor PE, ELG-150-C series

ELG-150-C1750A-3Y

123316 ELG-150-C1750A-3Y ELG-150-C1750A-3Y 4711287444970 Mean Well LED driver series ELG-150-C. LED drivers in a metal housing (IP65) with a constant current, 150W and a protective earth conductor PE. These devices are suitable for LED lighting applications, are not dimmable and have a built-in potentiometer for adjusting the current limitation as well as a built-in active PFC function. They comply with EN61347-1, EN61347-2-13, 6kV surge immunity level, EN55015, EN61000-3-2 class C, EN61000-3-3 as well as EN61547 and are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage. We offer the following types of this Mean Well series: ELG-150-C500A-3Y, ELG-150-C700A-3Y, ELG-150-C1050A-3Y, ELG-150-C1400A-3Y, ELG-150-C1750A-3Y and ELG-150-C2100A-3Y. single output output: 149,8 to 151,2W input voltage: 105 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 65A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 219x63x35,5mm weight: 950g

Specifications

manufacturer
Manufacturer's name ELG-150-C1750A-3Y
GTIN 4711287444970
Output current tolerance [%] 5
Efficiency [%] 91
Output power [W] 150,5
Output current [mA] 1750
Output voltage range [V] 43...86
Data Sheet

Unit price

33,69 €

Volume discounts

Quantity Unit price
50 + 32,59 €

Stock: 15
Further delivery:
CW 16/2025
