ELG-100-48-3Y

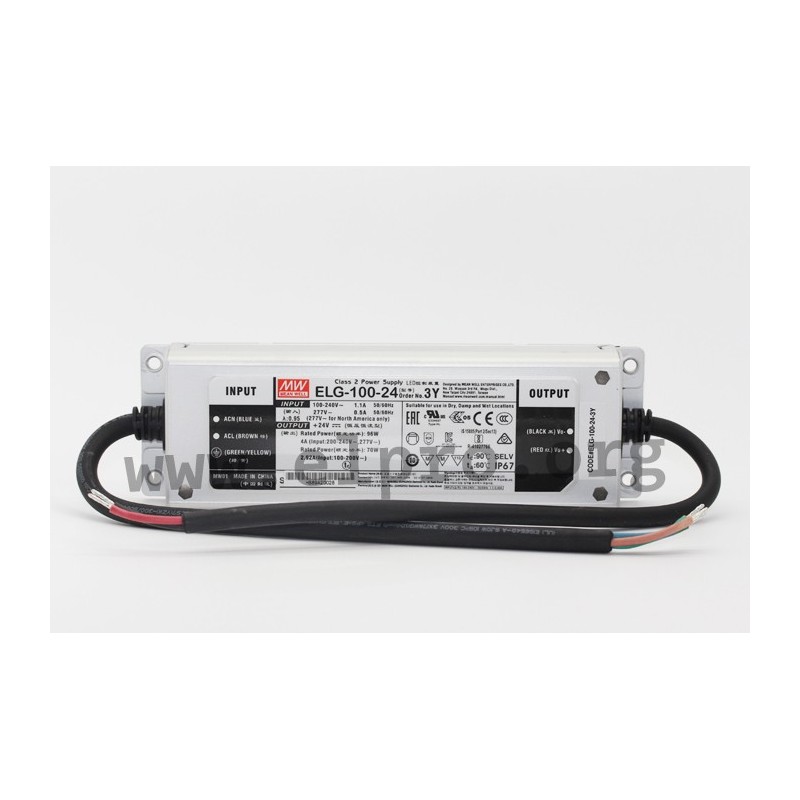

Mean Well LED driver series ELG-100

LED drivers in a metal housing (IP67) with a constant current / constant voltage, a protective earth conductor PE and 96W. These SELV compliant devices are protected against overload (autor ecovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-100-24-3Y, ELG-100-36-3Y, ELG-100-42-3Y, ELG-100-48-3Y and ELG-100-54-3Y.

  • single output
  • output: 95,76 to 96,12W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g
ELG-100-48-3Y, Mean Well LED drivers, 100W, IP67, CV and CC (mixed mode), protective earth conductor (PE), ELG-100 series

ELG-100-48-3Y

244574 ELG-100-48-3Y ELG-100-48-3Y 4711287440439 Mean Well LED driver series ELG-100. LED drivers in a metal housing (IP67) with a constant current / constant voltage, a protective earth conductor PE and 96W. These SELV compliant devices are protected against overload (autor ecovery), overtemperature, overvoltage as well as short circuit and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. They have a built-in active PFC function and are suitable for LED lighting applications. We offer the following types of this Mean Well series: ELG-100-24-3Y, ELG-100-36-3Y, ELG-100-42-3Y, ELG-100-48-3Y and ELG-100-54-3Y. single output output: 95,76 to 96,12W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 199x63x35,5mm weight: 850g

Specifications

manufacturer
Manufacturer's name ELG-100-48-3Y
GTIN 4711287440439
Output voltage [V] 48
Efficiency [%] 90
Output current [A] 2
Output voltage tolerance: [%] 2
Output power [W] 96
Ripple [mVp-p] 300
Data Sheet

Unit price

32,59 €

Stock: 0
Further delivery:
CW 16/2025
