ELG-100-36B-3Y

Mean Well LED driver series ELG-100

LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer), a protective earth conductor PE and 100W. These SELV compliant devices are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature and are suitable for LED lighting applications. They have a built-in active PFC function and a built-in potentiometer for adjusting the output voltage / current limitation as well as comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. We offer the following types of this Mean Well series: ELG-100-24B-3Y, ELG-100-36B-3Y, ELG-100-42B-3Y, ELG-100-48B-3Y and ELG-100-54B-3Y.

  • single output
  • output: 95,76 to 96,12W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g

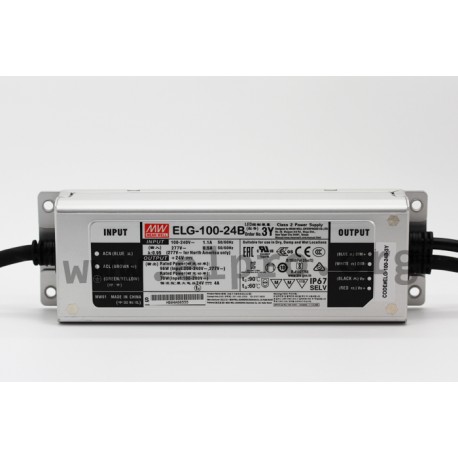

ELG-100-36B-3Y, Mean Well LED switching power supplies, 100W, IP67, dimmable, with protective earth PE, ELG-100 series

ELG-100-36B-3Y

109232 ELG-100-36B-3Y ELG-100-36B-3Y 4711287440217 Mean Well LED driver series ELG-100. LED drivers in a metal housing (IP67) with a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer), a protective earth conductor PE and 100W. These SELV compliant devices are protected against overload (auto recovery), overvoltage, short circuit as well as overtemperature and are suitable for LED lighting applications. They have a built-in active PFC function and a built-in potentiometer for adjusting the output voltage / current limitation as well as comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level. We offer the following types of this Mean Well series: ELG-100-24B-3Y, ELG-100-36B-3Y, ELG-100-42B-3Y, ELG-100-48B-3Y and ELG-100-54B-3Y. single output output: 95,76 to 96,12W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 199x63x35,5mm weight: 850g

Specifications

manufacturer
Manufacturer's name ELG-100-36B-3Y
GTIN 4711287440217
Output voltage [V] 36
Efficiency [%] 89
Output current [A] 2,66
Output voltage tolerance: [%] 2,5
Output power [W] 95,76
Ripple [mVp-p] 250
Data Sheet

Unit price

34,59 €

Volume discounts

Quantity Unit price
50 + 33,89 €

Stock: 5
Further delivery:
CW 12/2025
