ELG-100-36A-3Y

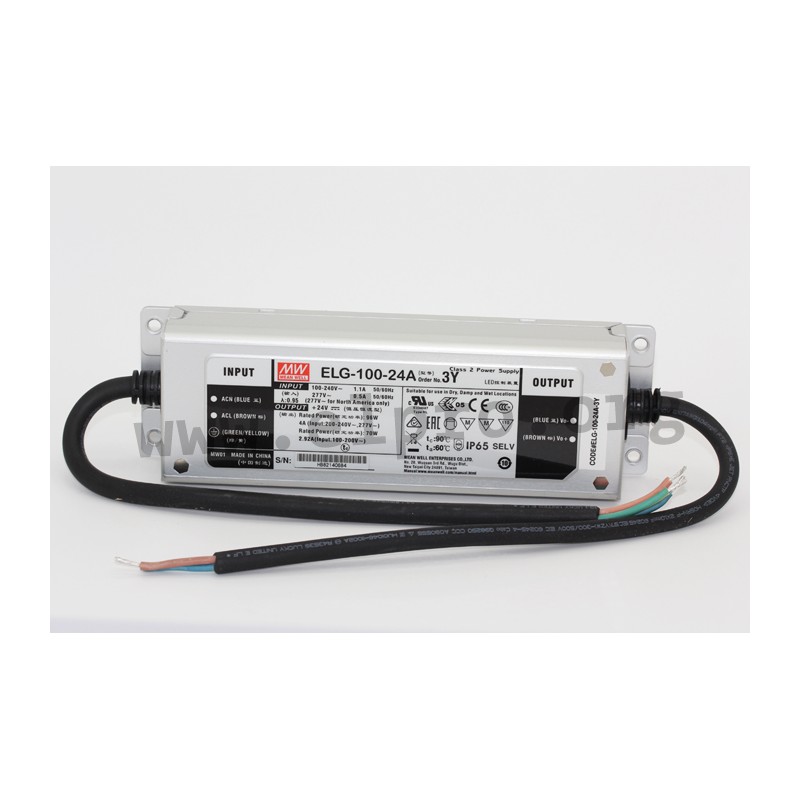

Mean Well LED driver series ELG-100

LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode), a protective earth conductor PE and 100W. These devices are SELV compliant and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage / current limitation. We offer the following types of this Mean Well series: ELG-100-24A-3Y, ELG-100-36A-3Y, ELG-100-42A-3Y, ELG-100-48A-3Y and ELG-100-54A-3Y.

  • single output
  • output: 95,76 to 96,12W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 60A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g

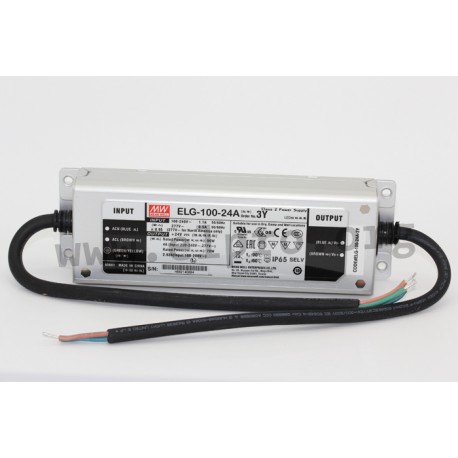

ELG-100-_A-3Y

ELG-100-36A-3Y

109231 ELG-100-36A-3Y ELG-100-36A-3Y 4711287440170 Mean Well LED driver series ELG-100. LED drivers in a metal housing (IP65) with a constant current / constant voltage (mixed mode), a protective earth conductor PE and 100W. These devices are SELV compliant and comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 Class C, EN61000-3-3 as well as EN61547. They are protected against overload (auto recovery), overtemperature, short circuit as well as overvoltage and have a built-in active PFC function as well as a built-in potentiometer for adjusting the output voltage / current limitation. We offer the following types of this Mean Well series: ELG-100-24A-3Y, ELG-100-36A-3Y, ELG-100-42A-3Y, ELG-100-48A-3Y and ELG-100-54A-3Y. single output output: 95,76 to 96,12W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 60A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 199x63x35,5mm weight: 850g

Specifications

manufacturer
Manufacturer's name ELG-100-36A-3Y
GTIN 4711287440170
Output voltage [V] 36
Efficiency [%] 89
Output current [A] 2,66
Output voltage tolerance: [%] 2,5
Output power [W] 95,76
Ripple [mVp-p] 250
Data Sheet

Unit price

32,39 €

Volume discounts

Quantity Unit price
50 + 30,09 €

Stock: 7
Further delivery:
CW 12/2025
