ELG-100-C700-3Y

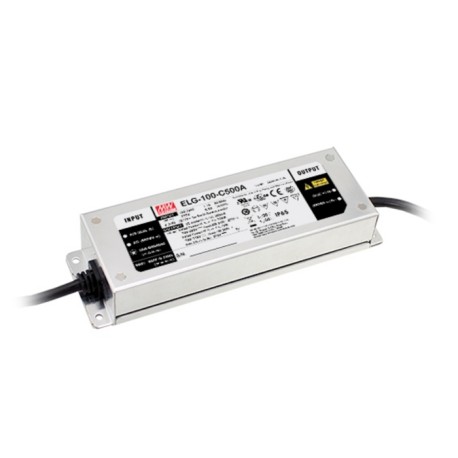

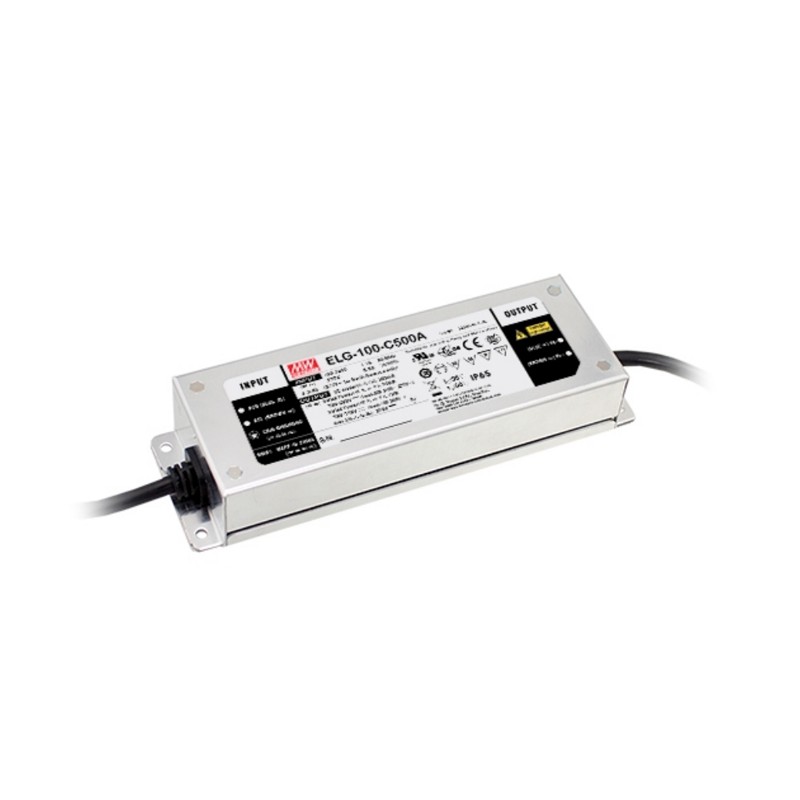

Mean Well LED driver series ELG-100-C

LED drivers in a metal housing (IP67) with 100W, a constant current and a protective earth conductor (PE). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, have a fixed output voltage and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: ELG-100-C350-3Y, ELG-100-C500-3Y, ELG-100-C700-3Y, ELG-100-C1050-3Y and ELG-100-C1400-3Y.

  • single output
  • output: 99,75 to 100,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 40A
  • no-load power: <0,5W
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • dimensions: 199x63x35,5mm
  • weight: 850g
ELG-100-C700-3Y, Mean Well LED drivers, 100W, IP67, constant current, fixed preset, protective earth conductor (PE), ELG-100-C s

ELG-100-C700-3Y

244731 ELG-100-C700-3Y ELG-100-C700-3Y 4711287444512 Mean Well LED driver series ELG-100-C. LED drivers in a metal housing (IP67) with 100W, a constant current and a protective earth conductor (PE). These SELV compliant devices have a built-in active PFC function and are protected against overload (auto recovery), overvoltage as well as short circuit. They are suitable for LED lighting applications, have a fixed output voltage and comply with EN61347-1, EN61347-2-13, EN55015 as well as EN61000-3-2 class C. We offer the following types of this Mean Well series: ELG-100-C350-3Y, ELG-100-C500-3Y, ELG-100-C700-3Y, ELG-100-C1050-3Y and ELG-100-C1400-3Y. single output output: 99,75 to 100,8W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 40A no-load power: &lt;0,5W withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C dimensions: 199x63x35,5mm weight: 850g

Specifications

manufacturer
Manufacturer's name ELG-100-C700-3Y
GTIN 4711287444512
Output voltage [V] 71...143
Output current tolerance [%] 5
Output current [mA] 700
Efficiency [%] 90
Output power [W] 100,1
Data Sheet

Unit price

32,59 €

Stock: 0
Further delivery:
CW 16/2025
