ELG-100-C1400B-3Y

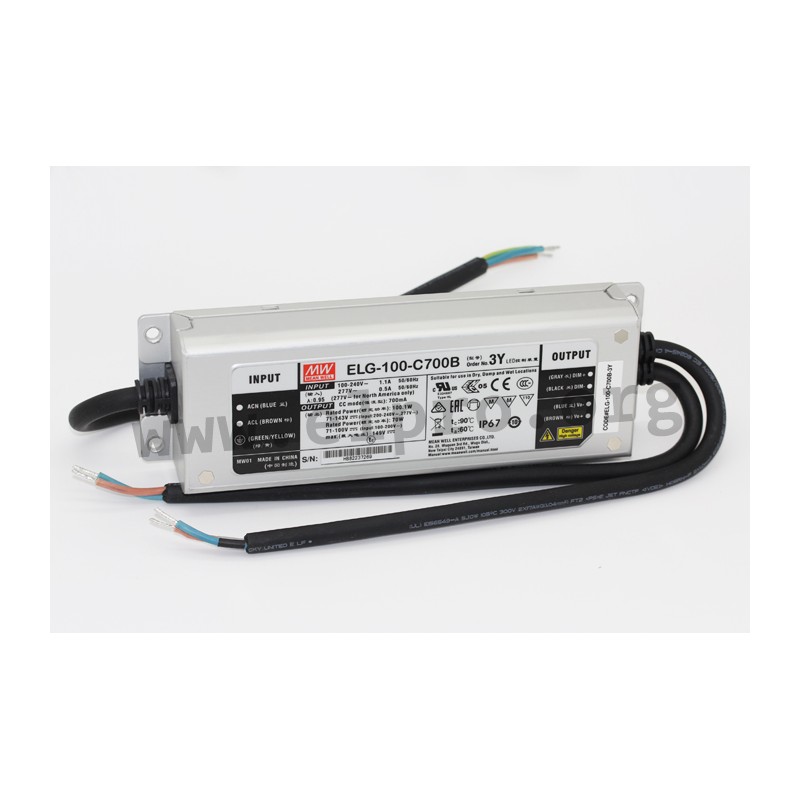

Mean Well LED driver series ELG-100-C

LED drivers in a metal case (IP67) with a constant current, a protective earth conductor PE, 100W and a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer). These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-C350B-3Y, ELG-100-C500B-3Y, ELG-100-C700B-3Y, ELG-100-C1050B-3Y and ELG-100-C1400B-3Y.

  • single output
  • output: 99,75 to 100,8W
  • input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 850g

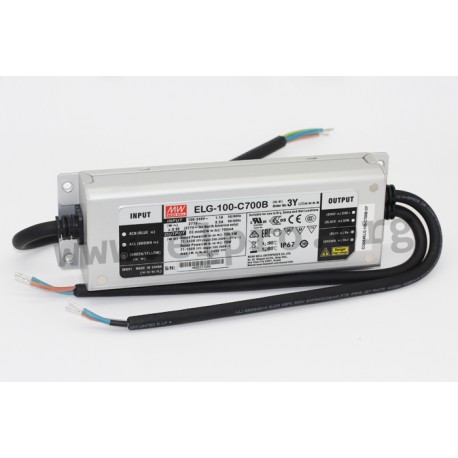

ELG-100-C1400B-3Y, Mean Well LED switching power supplies, 100W, IP67, constant current, dimmable, with protective earth PE, ELG

ELG-100-C1400B-3Y

123308 ELG-100-C1400B-3Y ELG-100-C1400B-3Y 4711287444154 Mean Well LED driver series ELG-100-C. LED drivers in a metal case (IP67) with a constant current, a protective earth conductor PE, 100W and a 3 in 1 dimming function (0 to 10V DC, PWM, 100kOhm potentiometer). These devices comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as a 6kV surge immunity level and are suitable for LED lighting applications. They are protected against short circuit, overload (auto recovery), overvoltage as well as overtemperature and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-C350B-3Y, ELG-100-C500B-3Y, ELG-100-C700B-3Y, ELG-100-C1050B-3Y and ELG-100-C1400B-3Y. single output output: 99,75 to 100,8W input voltage: 100 to 305V AC (47 to 63Hz), 142 to 431V DC maximal input inrush current: 40A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 850g

Specifications

manufacturer
Manufacturer's name ELG-100-C1400B-3Y
GTIN 4711287444154
Output voltage [V] 35...72
Output current tolerance [%] 5
Efficiency [%] 90
Output power [W] 100,8
Output current [mA] 1400
Data Sheet

Unit price

34,59 €

Volume discounts

Quantity Unit price
50 + 33,89 €

Stock: 0
Next incoming goods:
CW 06/2025
9 units

Further delivery:
CW 16/2025
