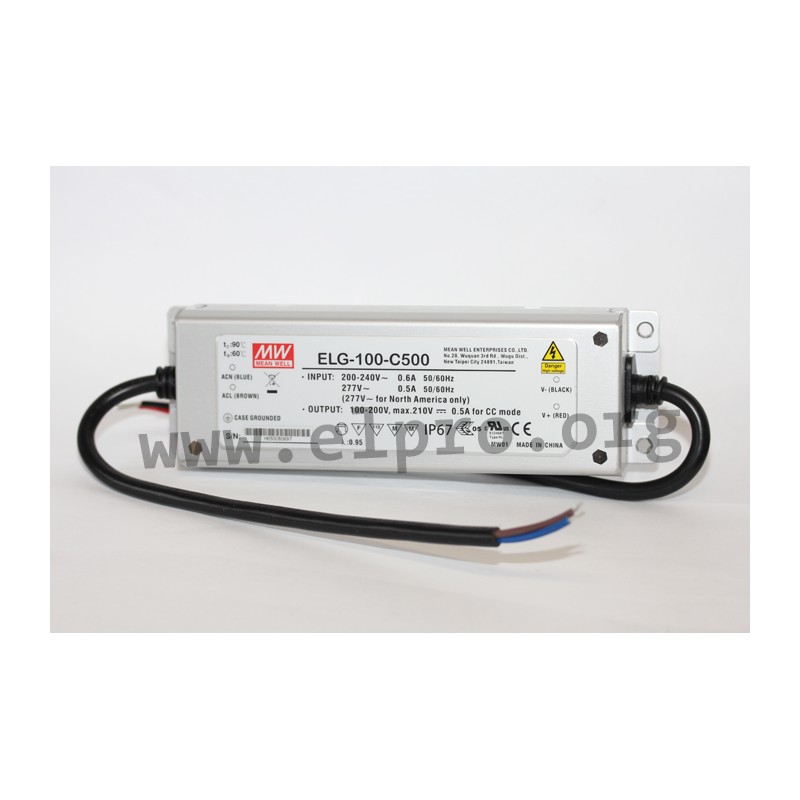

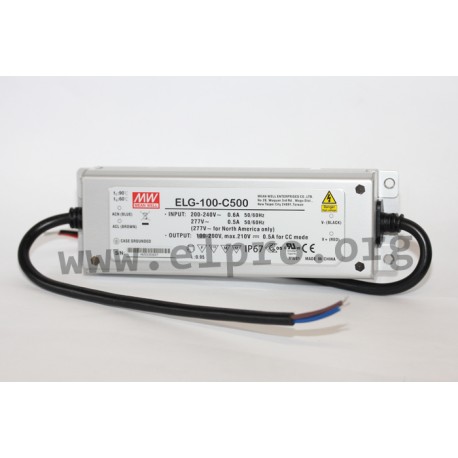

ELG-100-C500

Mean Well LED driver series ELG-100-C

LED drivers in a metal housing (IP67) with a constant current (fixed preset) and 100W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-C350, ELG-100-C500, ELG-100-C700, ELG-100-C1050 and ELG-100-C1400.

  • single output
  • output: 100W
  • input voltage: 180 to 295V AC (47 to 63Hz), 255 to 417V DC
  • maximal input inrush current: 40A
  • withstand voltage I/P-O/P: 3750V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -40 to +90°C
  • weight: 750g
Mean Well ELG-100-C series

ELG-100-C500

104584 ELG-100-C500 ELG-100-C500 4711287444369 Mean Well LED driver series ELG-100-C. LED drivers in a metal housing (IP67) with a constant current (fixed preset) and 100W. These SELV compliant devices are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit, are suitable for LED lighting applications and are not dimmable. They comply with EN61347-1, EN61347-2-13, EN55015, EN61000-3-2 class C, EN61000-3-3, EN61547 as well as 6kV surge immunity level and have a built-in active PFC function. We offer the following types of this Mean Well series: ELG-100-C350, ELG-100-C500, ELG-100-C700, ELG-100-C1050 and ELG-100-C1400. single output output: 100W input voltage: 180 to 295V AC (47 to 63Hz), 255 to 417V DC maximal input inrush current: 40A withstand voltage I/P-O/P: 3750V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -40 to +90°C weight: 750g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name ELG-100-C500
GTIN 4711287444369
Output voltage [V] 100...200
Output current tolerance [%] 5
Ripple [Vp-p] 2
Efficiency [%] 91
Output power [W] 100
Output current [mA] 500
Data Sheet

Unit price

23,79 €

Stock: 1
