DUPS20

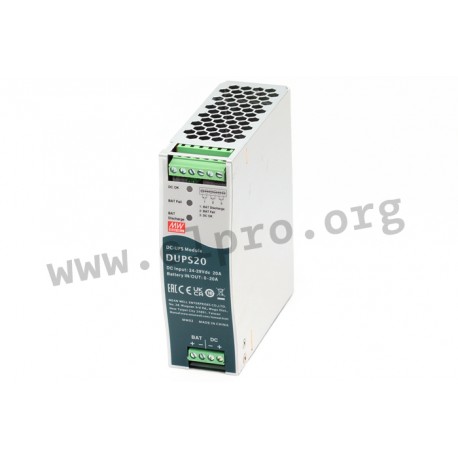

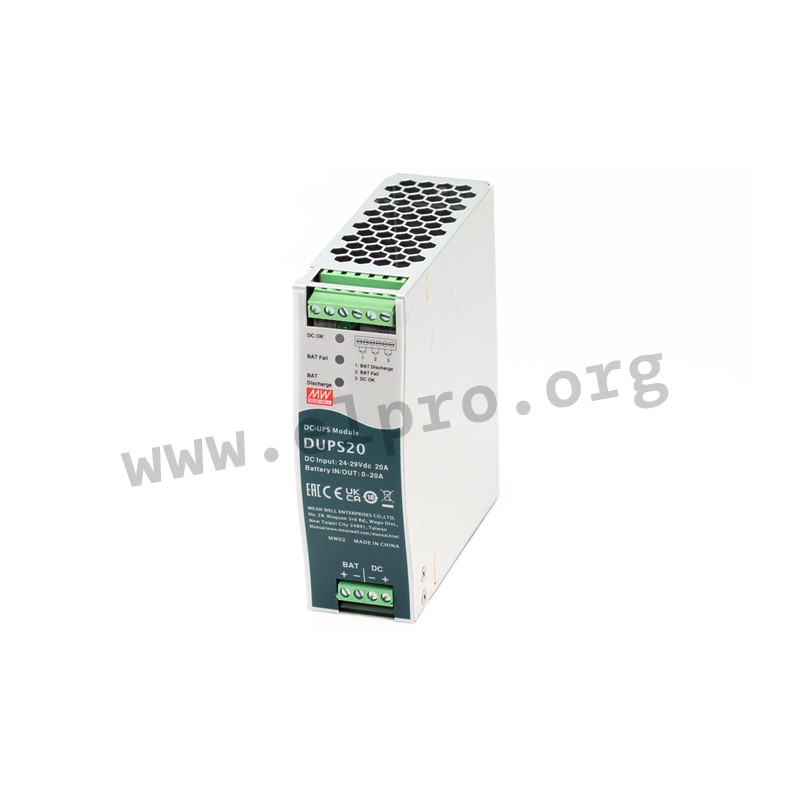

Mean Well UPS controller series DUPS-20

DC UPS controllers in a DIN rail housing with 480W and an LED status indicator. These devices are suitable for 24V systems (up to 20A) and are protected against short circuit, over discharge current as well as voltage reversal. They have a fanless design, are suitable for various lead-acid batteries (4 to 135Ah) and comply with EN55032 class B. We offer the type DUPS20 of this Mean Well series.

  • output: 480W
  • input voltage: 24 to 29V DC
  • input current: 20A
  • connection type: screw terminal
  • operating temperature: -30 to +70°C
  • dimensions: 40x125,2x113,5mm
  • weight: 310g
DUPS20, Mean Well DIN rail DC UPS controllers, 20A, DUPS-20 series

DUPS20

241417 DUPS20 DUPS20 4711287422732 Mean Well UPS controller series DUPS-20. DC UPS controllers in a DIN rail housing with 480W and an LED status indicator. These devices are suitable for 24V systems (up to 20A) and are protected against short circuit, over discharge current as well as voltage reversal. They have a fanless design, are suitable for various lead-acid batteries (4 to 135Ah) and comply with EN55032 class B. We offer the type DUPS20 of this Mean Well series. output: 480W input voltage: 24 to 29V DC input current: 20A connection type: screw terminal operating temperature: -30 to +70°C dimensions: 40x125,2x113,5mm weight: 310g

Specifications

manufacturer
Manufacturer's name DUPS20
GTIN 4711287422732
Input voltage range [V] 24...29
Termination type screw terminal
Rated input current [A] 20
Output power [W] 480
Data Sheet

Unit price

25,69 €

Volume discounts

Quantity Unit price
50 + 23,89 €

Stock: 0
Next incoming goods:
CW 49/2024
93 units

Further delivery:
CW 12/2025
