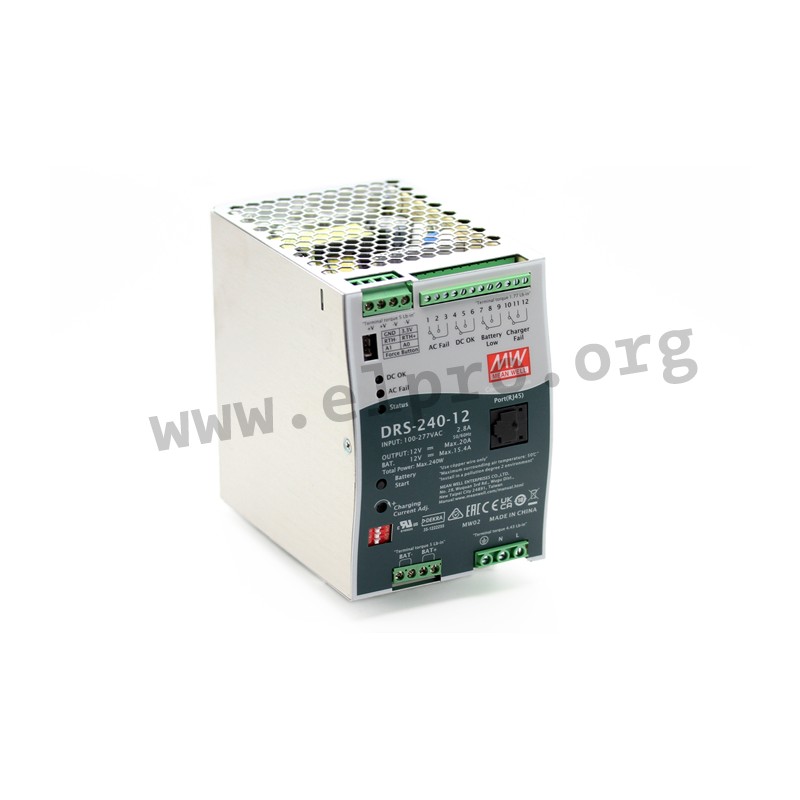

DRS-240-36CAN

Mean Well battery charger series DRS-240

Switching power supplies in a DIN rail housing with 240W, a DC UPS function, a universal input and a 2/3 stage charging curve. These devices are suitable for lead-acid as well as Li-ion batteries, have a CAN bus interface and are protected against overload, overvoltage, deep discharge, voltage reversal as well as short circuit. They have relay contacts for AC fail, battery low, DC OK as well as charger fail and comply with EN62368-1, EN61000-3-2 as well as EN55032 class B. We offer the following types of this Mean Well series: DRS-240-12CAN, DRS-240-24CAN, DRS-240-36CAN and DRS-240-48CAN.

  • single output
  • output: 240W
  • input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC
  • maximal input inrush current: 60A
  • input current: 1,4A
  • withstand voltage I/P-O/P: 4000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 1190g

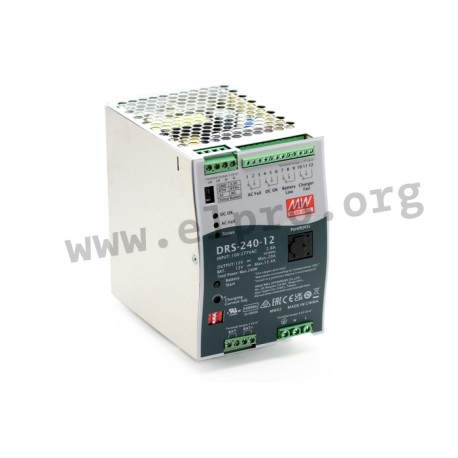

DRS-240-36CAN, Mean Well DIN rail battery chargers, 240W, UPS function, CAN bus, DRS-240 series

DRS-240-36CAN

244535 DRS-240-36CAN DRS-240-36CAN Mean Well battery charger series DRS-240. Switching power supplies in a DIN rail housing with 240W, a DC UPS function, a universal input and a 2/3 stage charging curve. These devices are suitable for lead-acid as well as Li-ion batteries, have a CAN bus interface and are protected against overload, overvoltage, deep discharge, voltage reversal as well as short circuit. They have relay contacts for AC fail, battery low, DC OK as well as charger fail and comply with EN62368-1, EN61000-3-2 as well as EN55032 class B. We offer the following types of this Mean Well series: DRS-240-12CAN, DRS-240-24CAN, DRS-240-36CAN and DRS-240-48CAN. single output output: 240W input voltage: 90 to 305V AC (47 to 63Hz), 127 to 431V DC maximal input inrush current: 60A input current: 1,4A withstand voltage I/P-O/P: 4000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C weight: 1190g

Specifications

manufacturer
Manufacturer's name DRS-240-36CAN
Output voltage [V] 36
Efficiency [%] 92
Output current [A] 6,6
Output voltage tolerance: [%] 1
Output power [W] 240
Ripple [mVp-p] 360
Data Sheet

Unit price

197,69 €

Stock: 0
Further delivery:
CW 12/2025

Minimum order quantity 200 units or
multiples of 200.
