DRH-120-48

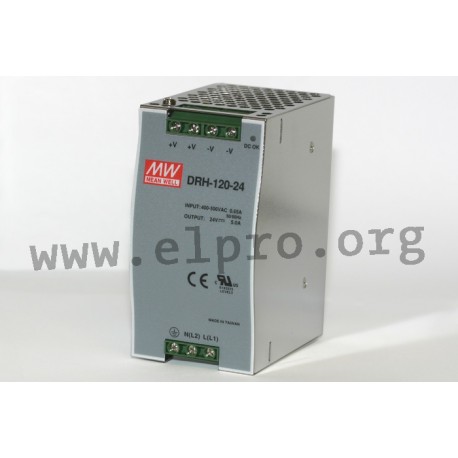

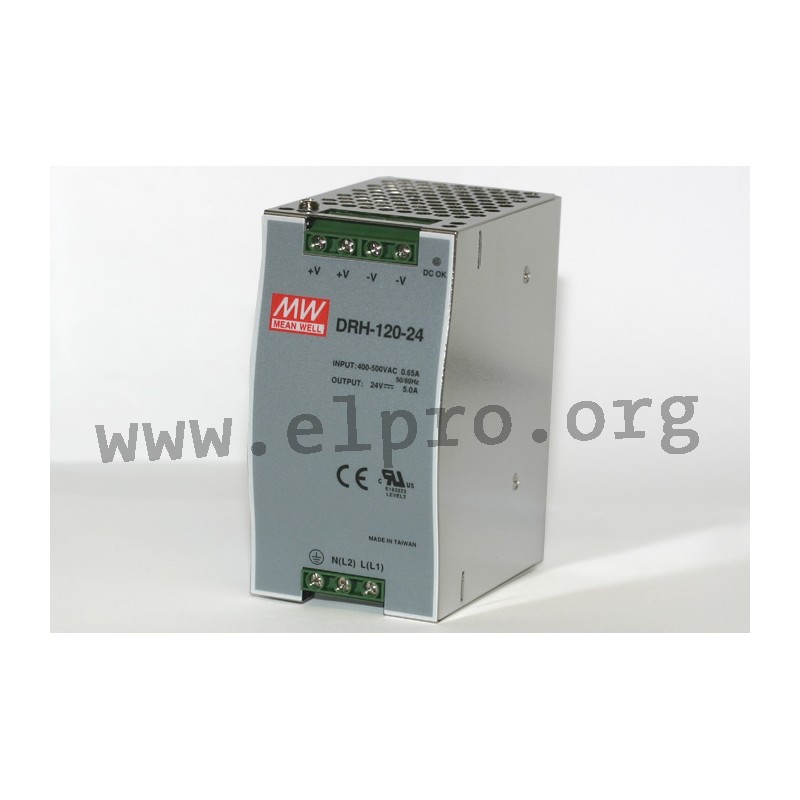

Mean Well DIN rail power supply series DRH-120

Switching power supplies in a DIN rail housing with 120W, a universal input and screw terminals (touch guard). These devices have a 2-phase input and are protected against overload (auto recovery), overtemperature, overvoltage as well as short circuit. They have a fanless design and comply with EN61000-6-2, EN50082-2, EN55032, EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3. We offer the type DRH-120-48 of this Mean Well series.

  • single output
  • output: 120W
  • input voltage: 340 to 550V AC (47 to 63Hz), 480 to 780V DC
  • maximal input inrush current: 50A
  • leakage current: <3,5mA
  • overload protection: 105 to 160%
  • operating temperature: -20 to +60°C
  • dimensions: 65,5x125,2x100mm
  • weight: 750g

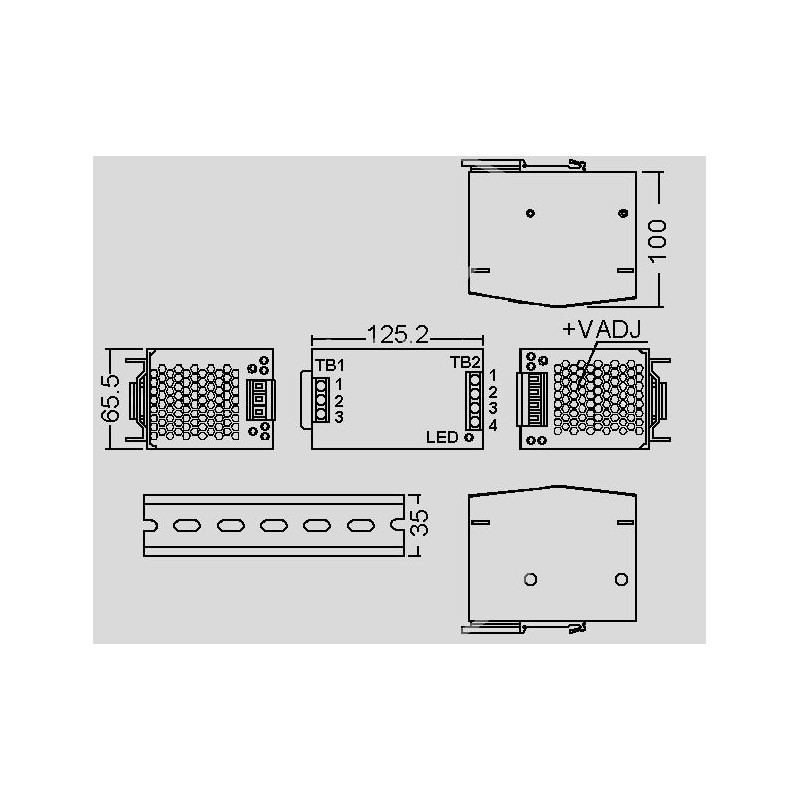

dimensions and terminal pin assignment

DRH-120-48

32661 DRH-120-48 DRH-120-48 Mean Well DIN rail power supply series DRH-120. Switching power supplies in a DIN rail&nbsp;housing with 120W, a universal input and screw terminals (touch guard). These devices have a 2-phase input and are protected against overload (auto recovery),&nbsp;overtemperature, overvoltage as well as short circuit. They have a fanless design and comply with&nbsp;EN61000-6-2, EN50082-2, EN55032,&nbsp;EN61204-3 class B, EN61000-3-2 as well as EN61000-3-3.&nbsp;We offer the type&nbsp;DRH-120-48 of this Mean Well series. single output output: 120W input voltage: 340 to 550V AC (47 to 63Hz), 480 to 780V DC maximal input inrush current: 50A leakage current: &lt;3,5mA overload protection: 105 to 160% operating temperature: -20 to +60&deg;C dimensions: 65,5x125,2x100mm weight: 750g

Discontinued items. Only remainder of stock available.

Specifications

manufacturer
Manufacturer's name DRH-120-48
Output voltage [V] 48
Phase 2 phase
Efficiency [%] 86
Output current range [A] 0...2,5
Output voltage tolerance: [%] 1
Output power [W] 120
Ripple [mVp-p] 80
Data Sheet

Unit price

49,29 €

Stock: 1
