DRC-60A

Mean Well battery charger series DRC-60

Switching power supplies in a DIN rail housing with 60W, a battery charger, a power fail signal, a battery low signal, an LED indicator for power on, screw terminals (touch guard) and a universal input. These devices have a fanless design, are protected against voltage reversal (by fuse), overload (auto recovery), overvoltage as well as short circuit and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DRC-60A and DRC-60B.

  • single output
  • output: 59,34W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • overload protection: 105 to 150%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 300g

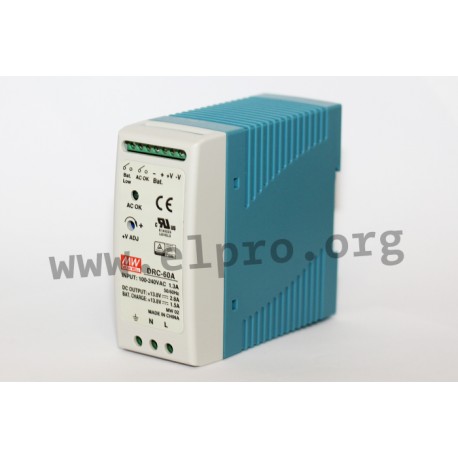

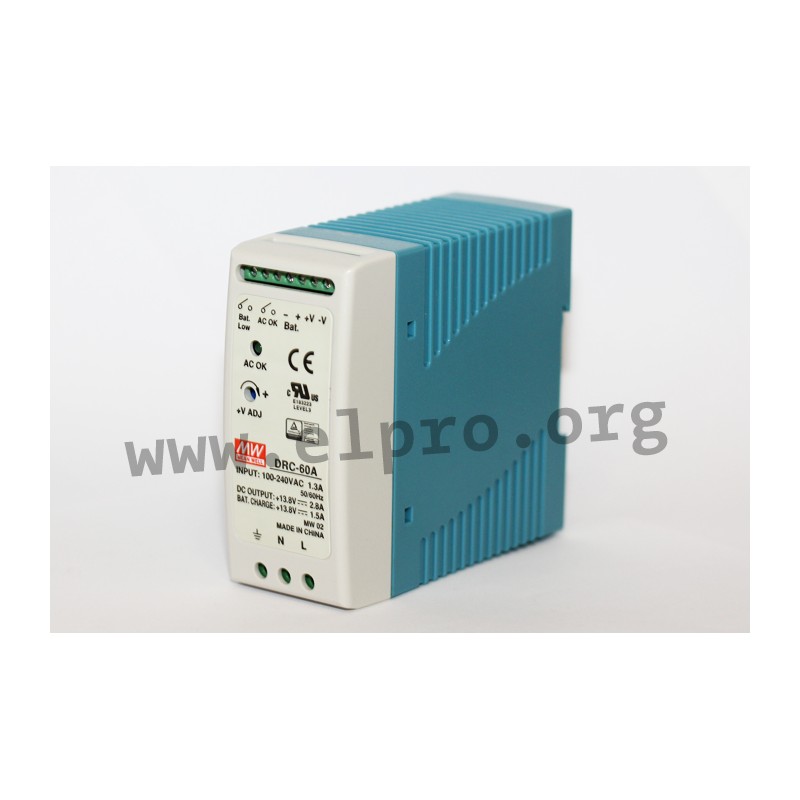

Meanwell DRC-60A

DRC-60A

44963 DRC-60A DRC-60A 4711232760223 Mean Well battery charger series DRC-60. Switching power supplies in a DIN rail housing with 60W, a battery charger, a power fail signal, a battery low signal, an LED indicator for power on, screw terminals (touch guard) and a universal input. These devices have a fanless design, are protected against voltage reversal (by fuse), overload (auto recovery), overvoltage as well as short circuit and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DRC-60A and DRC-60B. single output output: 59,34W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A overload protection: 105 to 150% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 300g

Specifications

manufacturer
Manufacturer's name DRC-60A
GTIN 4711232760223
Output voltage [V] 13,8
Phase 2 phase
Efficiency [%] 86
Output current range [A] 2,8 (1,5)
Output voltage tolerance: [%] 1
Output power [W] 59,34
Output voltage adjustment [V] 12...15
Ripple [mVp-p] 120
Data Sheet

Unit price

28,09 €

Volume discounts

Quantity Unit price
50 + 26,19 €

Stock: 261
Next incoming goods:
CW 03/2025
504 units

Further delivery:
CW 12/2025
