DRA-40-12

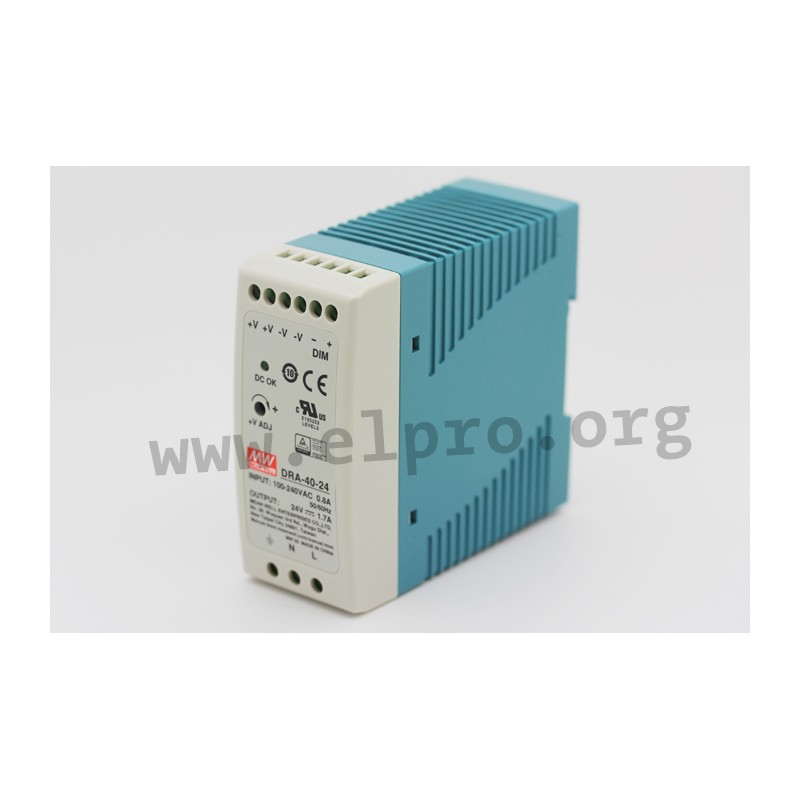

Mean Well DIN rail power supply series DRA-40

Switching power supplies with 40W, a universal input, screw terminals (touch guard) and an LED indicator for power on. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have both an adjustable output voltage as well as an adjustable output current and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DRA-40-12 and DRA-40-24.

  • single output
  • output: 40,08W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 60A
  • overload protection: 95 to 108%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 500V AC
  • operating temperature: -30 to +70°C
  • weight: 300g

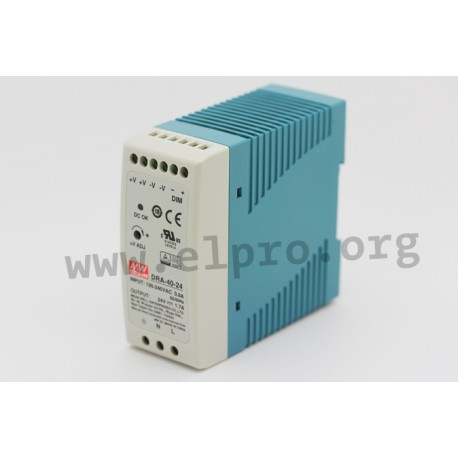

DRA-40 series

DRA-40-12

108611 DRA-40-12 DRA-40-12 4711287422114 Mean Well DIN rail power supply series DRA-40. Switching power supplies with 40W, a universal input, screw terminals (touch guard) and an LED indicator for power on. These devices are suitable for DIN rail mounting and are protected against overload (auto recovery), overvoltage as well as short circuit. They have both an adjustable output voltage as well as an adjustable output current and comply with UL/EN62368-1, EN55032 class B, EN61000-3-2 as well as EN61000-3-3. We offer the following types of this Mean Well series: DRA-40-12 and DRA-40-24. single output output: 40,08W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 60A overload protection: 95 to 108% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 500V AC operating temperature: -30 to +70°C weight: 300g

Specifications

manufacturer
Manufacturer's name DRA-40-12
GTIN 4711287422114
Output voltage [V] 12
Efficiency [%] 85
Output current range [A] 0...3,34
Output voltage tolerance: [%] 1
Output power [W] 40,08
Ripple [mVp-p] 120
Data Sheet

Unit price

19,89 €

Volume discounts

Quantity Unit price
50 + 18,69 €

Stock: 199
Further delivery:
CW 17/2025
