DPU01L-05

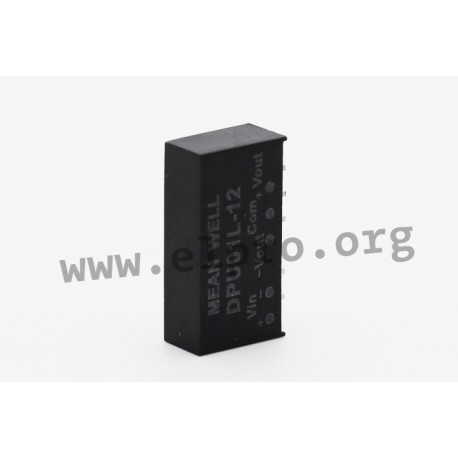

Mean Well DC/DC converter series DPU01

Unregulated DC/DC converters in a SIL6 housing with 1W and an input voltage ratio of 1:1. These devices are suitable for direct PCB mounting and are protected against short circuit. They have a high efficiency and comply with EN55032 class A. We offer the following types of this Mean Well series: DPU01L-05, DPU01L-12, DPU01L-15, DPU01M-05, DPU01M-12, DPU01M-15, DPU01N-05, DPU01N-12 and DPU01N-15.

  • dual output
  • output: 1W
  • output voltage tolerance: ±3%
  • maximal ripple and noise: 75mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +90°C
  • weight: 1,8g
DPU01L-05, 1 W, SIL 6 housing, DPU01 series by Meanwell

DPU01L-05

110292 DPU01L-05 DPU01L-05 4711287479248 Mean Well DC/DC converter series DPU01. Unregulated DC/DC converters in a SIL6 housing with 1W and an input voltage ratio of 1:1. These devices are suitable for direct PCB mounting and are protected against short circuit. They have a high efficiency and comply with EN55032 class A. We offer the following types of this Mean Well series: DPU01L-05, DPU01L-12, DPU01L-15, DPU01M-05, DPU01M-12, DPU01M-15, DPU01N-05, DPU01N-12 and DPU01N-15. dual output output: 1W output voltage tolerance: ±3% maximal ripple and noise: 75mVpp withstand voltage: 1500V DC operating temperature: -40 to +90°C weight: 1,8g

Specifications

manufacturer
Manufacturer's name DPU01L-05
GTIN 4711287479248
Input voltage [V] 4,5...5,5
Output voltage [V] 5
Efficiency [%] 78
Output current range [A] ±0...100
Data Sheet

Unit price

2,79 €

Volume discounts

Quantity Unit price
50 + 2,49 €

Stock: 0
Next incoming goods:
CW 48/2024
187 units

Further delivery:
CW 18/2025
