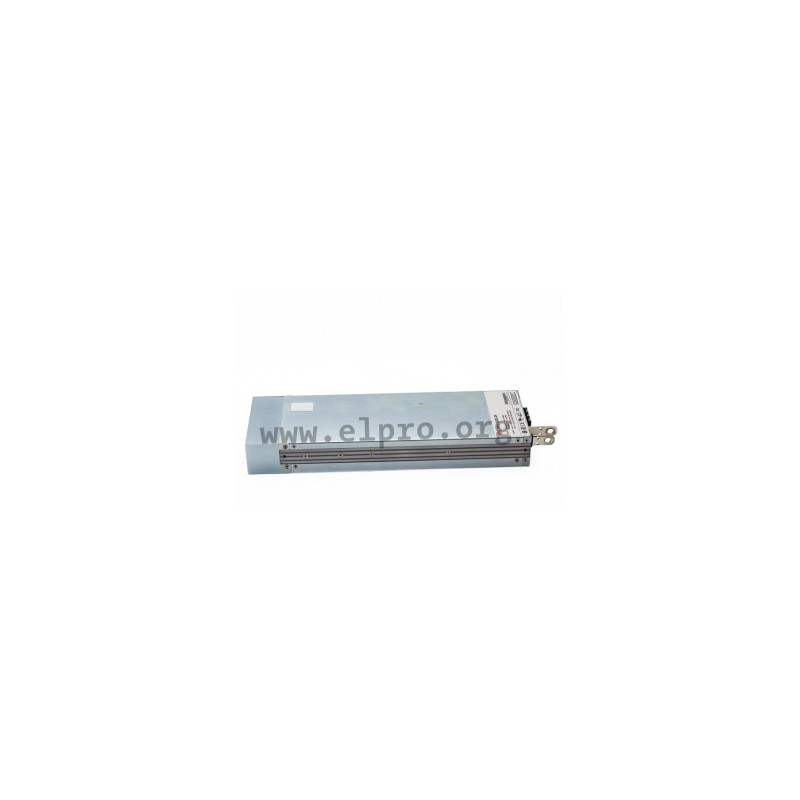

DPU-3200-24CAN

Mean Well power supply series DPU-3200

Switching power supplies in an enclosed housing with 3200W, screw terminals, a fan and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 16.000W (4+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. The output voltage as well as the constant current level are programmable. We offer the following types of this Mean Well series: DPU-3200-24, DPU-3200-24CAN, DPU-3200-48, and DPU-3200-24CAN.

  • single output
  • output: 3192 to 3216W
  • input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC
  • maximal input inrush current: 55A
  • leakage current: <2mA
  • output voltage adjustment: ±1%
  • overload protection: 105 to 115%
  • withstand voltage I/P-O/P: 3000V AC
  • withstand voltage I/P-FG: 2000V AC
  • withstand voltage O/P-FG: 1500V AC
  • operating temperature: -30 to +70°C
  • weight: 2760g

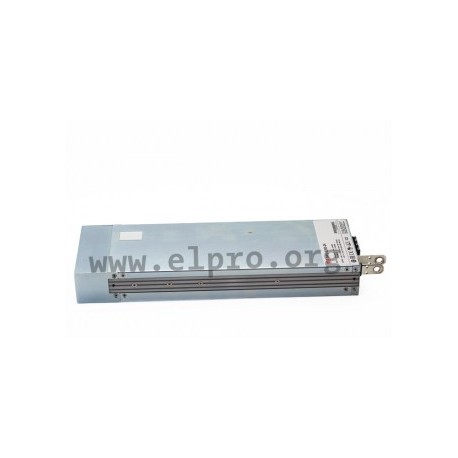

DPU-3200-24CAN, Mean Well switching power supplies, 3200W, DPU-3200 series

DPU-3200-24CAN

248618 DPU-3200-24CAN DPU-3200-24CAN Mean Well power supply series DPU-3200. Switching power supplies in an enclosed housing with 3200W, screw terminals, a fan and a universal input. These devices have a built-in active PFC function and are protected against overload, overtemperature, overvoltage as well as short circuit. They are suitable for an active current sharing of up to 16.000W (4+1 units) and comply with EN55032/EN55011 class B as well as EN55032/EN55011 class A. The output voltage as well as the constant current level are programmable. We offer the following types of this Mean Well series: DPU-3200-24, DPU-3200-24CAN, DPU-3200-48, and DPU-3200-24CAN. single output output: 3192 to 3216W input voltage: 90 to 264V AC (47 to 63Hz), 127 to 370V DC maximal input inrush current: 55A leakage current: &lt;2mA output voltage adjustment: ±1% overload protection: 105 to 115% withstand voltage I/P-O/P: 3000V AC withstand voltage I/P-FG: 2000V AC withstand voltage O/P-FG: 1500V AC operating temperature: -30 to +70°C weight: 2760g

Specifications

manufacturer
Manufacturer's name DPU-3200-24CAN
Output voltage [V] 24
Efficiency [%] 93,5
Output current range [A] 0...133
Output voltage tolerance: [%] 1
Output power [W] 3192
Ripple [mVp-p] 300
Data Sheet

Unit price

540,39 €

Stock: 0
Further delivery:
CW 09/2025
