DLP-04L

Mean Well switching power supply series DLP-04

These power supplies with a universal input are intended for DALI-Bus systems and conform to isolation class II. They are protected against short circuit (current limiting, auto recovery) as well as overvoltage (300V AC/5s). We offer the type DLP-04R with a compact size suited for DIN rail mounting 2SU (35mm) and the type DLP-04L in an enclosed case for linear mounting.

  • single output
  • output: 3,84W
  • input voltage: 90 to 264V AC (47 to 63Hz), 120 to 370V DC
  • maximal input inrush current: 20A
  • maximal leakage current: 0,5mA
  • withstand voltage I/P-O/P: 3000V AC
  • operating temperature: -20 to +60°C
  • weight DLP-04R: 87g
  • weight DLP-04L: 84g

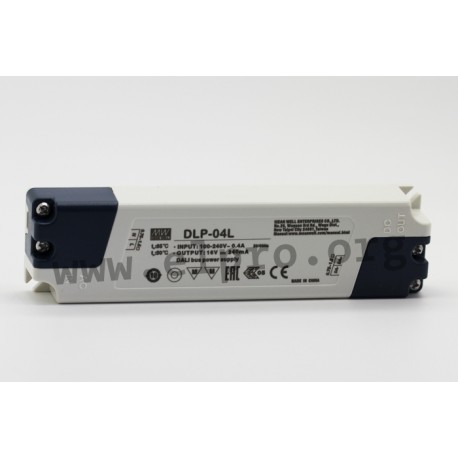

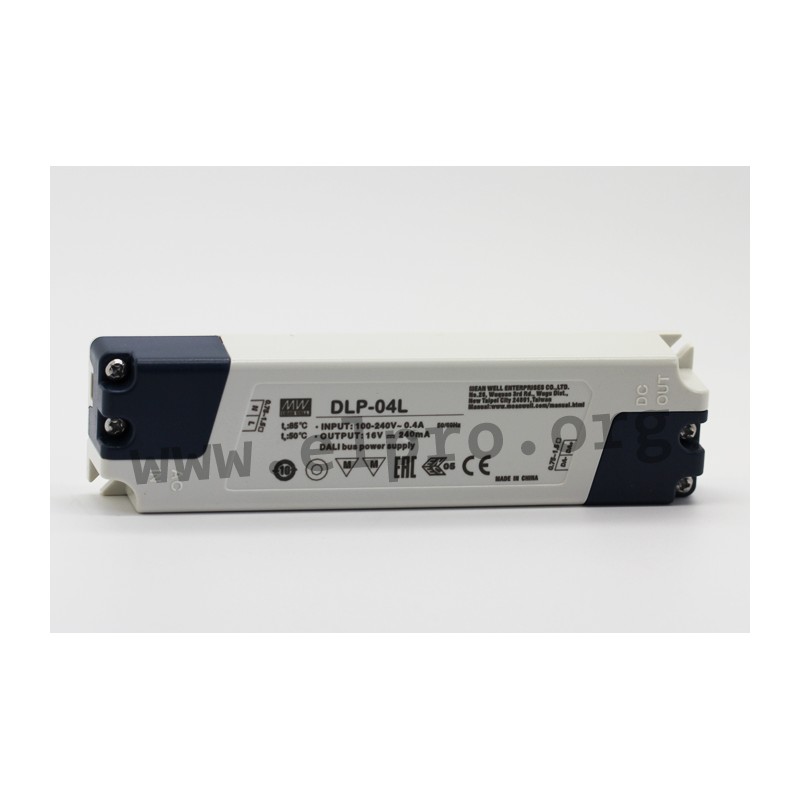

DLP-04L, power supply for DALI-Bus, DLP-04 series by Meanwell

DLP-04L

112008 DLP-04L DLP-04L 4711287456614 Mean Well switching power supply series DLP-04. These power supplies with a universal input are intended for DALI-Bus systems and conform to isolation class II. They are protected against short circuit (current limiting, auto recovery) as well as overvoltage (300V AC/5s). We offer the type DLP-04R with a compact size suited for DIN rail mounting 2SU (35mm) and the type DLP-04L in an enclosed case for linear mounting. single output output: 3,84W input voltage: 90 to 264V AC (47 to 63Hz), 120 to 370V DC maximal input inrush current: 20A maximal leakage current: 0,5mA withstand voltage I/P-O/P: 3000V AC operating temperature: -20 to +60°C weight DLP-04R: 87g weight DLP-04L: 84g

Specifications

manufacturer
Manufacturer's name DLP-04L
GTIN 4711287456614
Output voltage [V] 16
Output power [W] 3,84
Ripple [mVp-p] 50
Output current [mA] 240
Data Sheet

Unit price

21,29 €

Volume discounts

Quantity Unit price
50 + 19,79 €

Stock: 52
Further delivery:
CW 12/2025
