DLC-02-KN

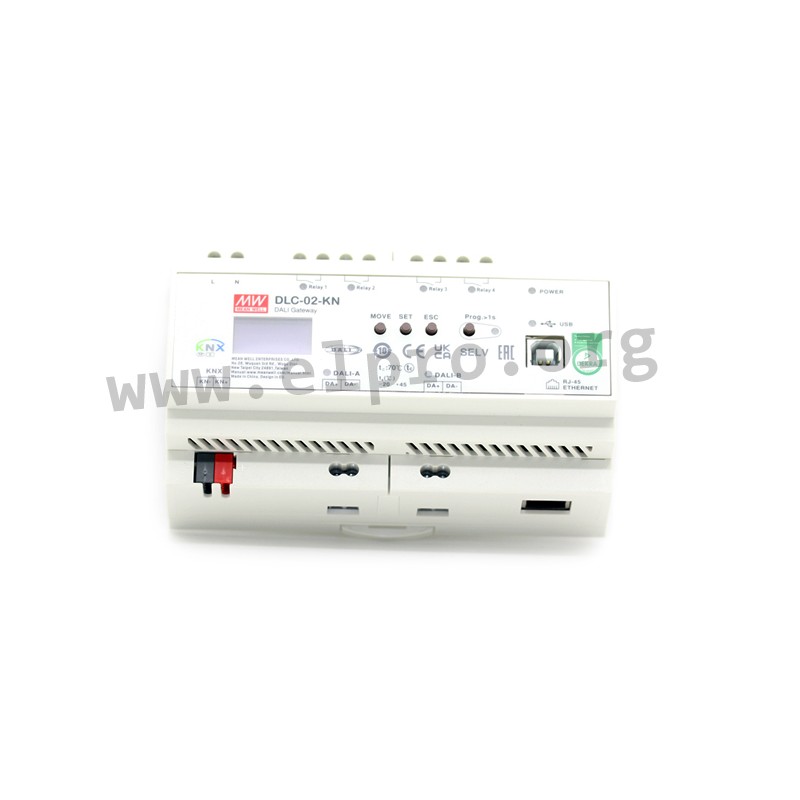

Mean Well KNX-DALI-2 gateway series DLC-02-KN

KNX-DALI-2 gateways with two DALI bus channels and a built-in DALI power supply (up to 250mA per bus). These devices have four relays (250V/5A) as well as an LCD display and comply with EN55015 as well as EN61347-1. They are suitable for connecting up to 2*64 DALI ECGs/drivers and 2*12 input devices with a maximum of 16 scenes and group settings per channel. We offer the type DLC-02-KN of this Mean Well series.

  • input voltage: 100 to 305V AC (47 to 63Hz), 140 to 430V DC
  • input current: 0,25A
  • operating temperature: -25 to +45°C
  • dimensions: 144x90x58,3mm
  • weight: 430g

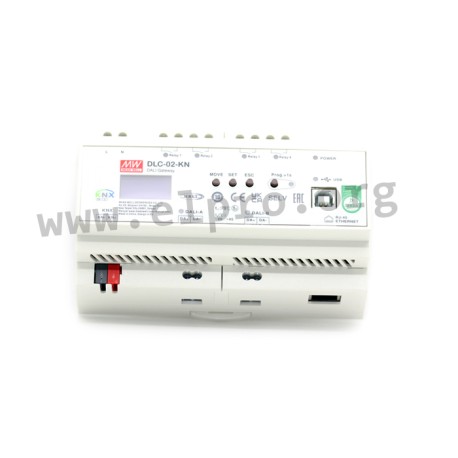

DLC-02-KN, Mean Well KNX-DALI-2 gateway, DLC-02-KN series

DLC-02-KN

240220 DLC-02-KN DLC-02-KN 4711232760124 Mean Well KNX-DALI-2 gateway series DLC-02-KN. KNX-DALI-2 gateways with two DALI bus channels and a built-in DALI power supply (up to 250mA per bus). These devices have four relays (250V/5A) as well as an LCD display and comply with EN55015 as well as EN61347-1. They are suitable for connecting up to 2*64 DALI ECGs/drivers and 2*12 input devices with a maximum of 16 scenes and group settings per channel. We offer the type DLC-02-KN of this Mean Well series. input voltage: 100 to 305V AC (47 to 63Hz), 140 to 430V DC input current: 0,25A operating temperature: -25 to +45°C dimensions: 144x90x58,3mm weight: 430g

Specifications

manufacturer
Manufacturer's name DLC-02-KN
GTIN 4711232760124
Data Sheet

Unit price

292,19 €

Volume discounts

Quantity Unit price
50 + 282,49 €

Stock: 8
Further delivery:
CW 12/2025
