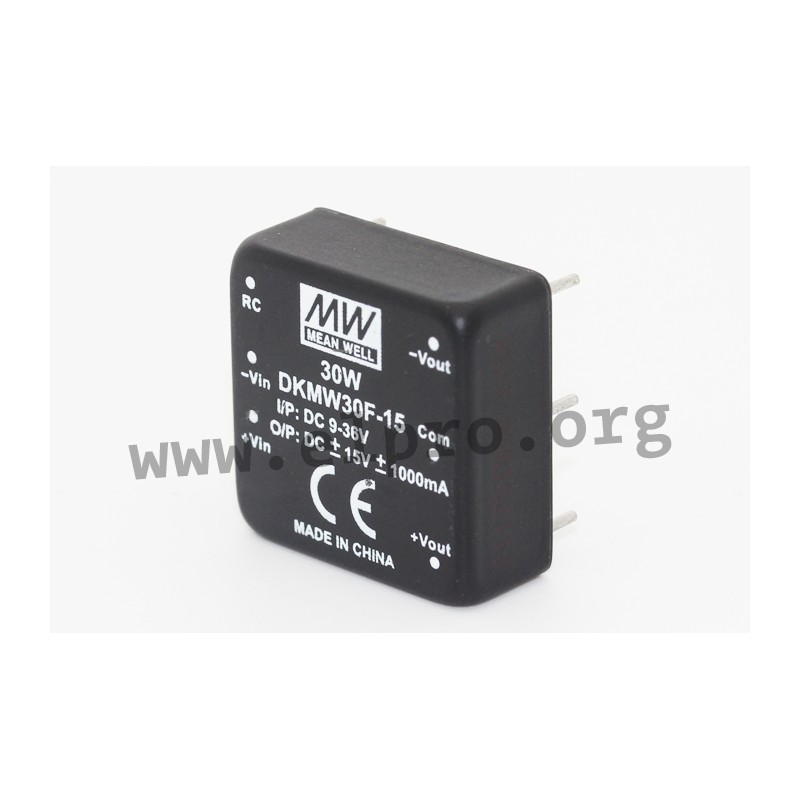

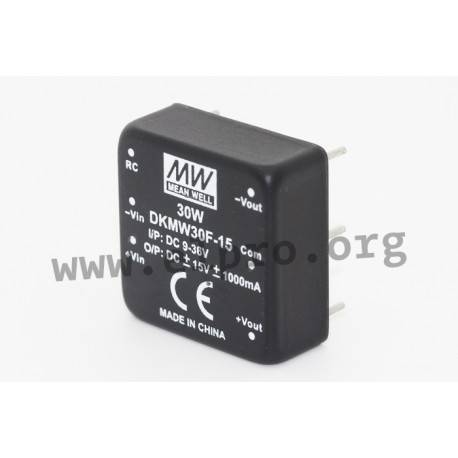

DKMW30F-15

Mean Well DC/DC converter series DKMW30

DC/DC converters in a 1"x1" DIL housing with 30W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices require no minimum load, have an input voltage ratio of 4:1 and are protected against overload, input undervoltage, overtemperature, short circuit (continuous) as well as overvoltage. They are suitable for PCB mounting and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: DKMW30F-12, DKMW30F-15, DKMW30G-12 and DKMW30G-15.

  • dual output
  • output: 30W
  • output voltage tolerance: ±1,5%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 35g
Mean Well DKMW30 series

DKMW30F-15

110522 DKMW30F-15 DKMW30F-15 4711287477367 Mean Well DC/DC converter series DKMW30. DC/DC converters in a 1"x1" DIL housing with 30W, a regulated output voltage, a remote ON/OFF control and a trimming output (±10%). These devices require no minimum load, have an input voltage ratio of 4:1 and are protected against overload, input undervoltage, overtemperature, short circuit (continuous) as well as overvoltage. They are suitable for PCB mounting and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: DKMW30F-12, DKMW30F-15, DKMW30G-12 and DKMW30G-15. dual output output: 30W output voltage tolerance: ±1,5% withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 35g

Specifications

manufacturer
Manufacturer's name DKMW30F-15
GTIN 4711287477367
Input voltage [V] 9...36
Output voltage [V] ±15
Output current range [mA] ±0...1000
Efficiency [%] 88
Data Sheet

Unit price

32,69 €

Volume discounts

Quantity Unit price
50 + 30,39 €

Stock: 19
Further delivery:
CW 18/2025
