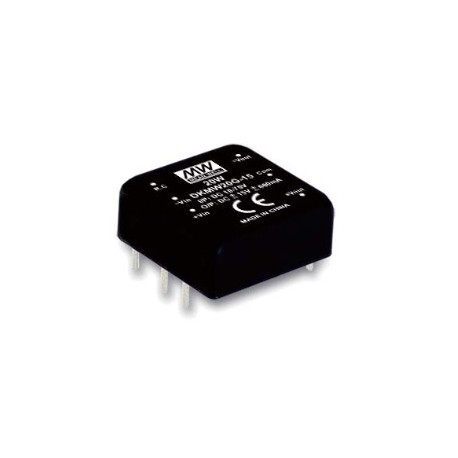

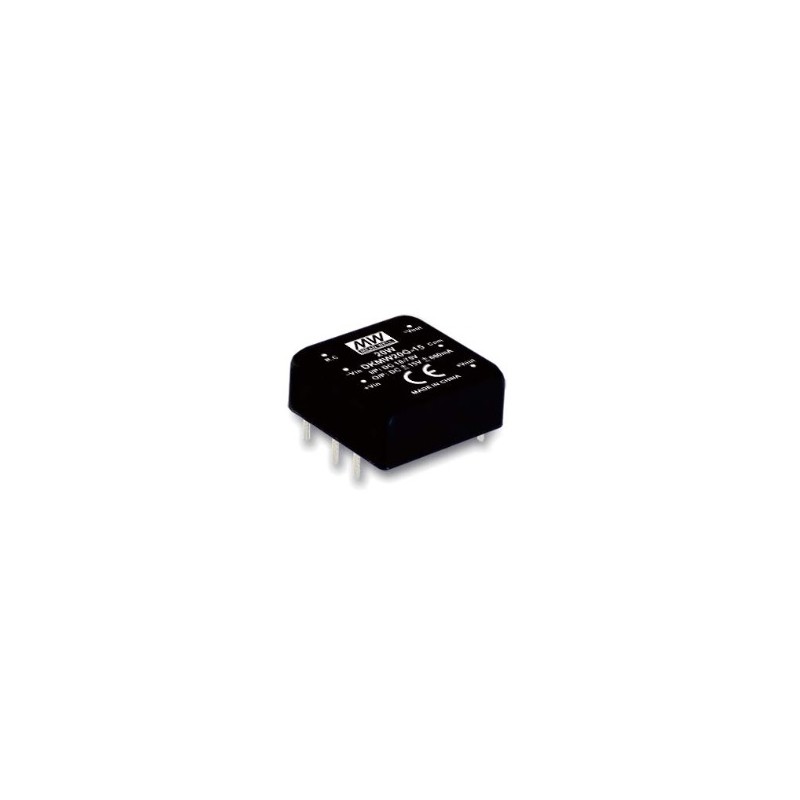

DKMW20F-15

Mean Well DC/DC converter series DKMW20

DC/DC converters in a 1"x1" DIL housing with 20W, a regulated output voltage, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for PCB mounting and are protected against overload, overvoltage, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: DKMW20F-12, DKMW20F-15, DKMW20G-12 and DKMW20G-15.

  • dual output
  • output: 20W
  • output voltage tolerance: ±1,5%
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • dimensions: 25,4x25,4x10,2mm
  • weight: 18g
Meanwell DKMW20 series

DKMW20F-15

110518 DKMW20F-15 DKMW20F-15 4711287477244 Mean Well DC/DC converter series DKMW20. DC/DC converters in a 1"x1" DIL housing with 20W, a regulated output voltage, a remote ON/OFF control and an input voltage ratio of 4:1. These devices are suitable for PCB mounting and are protected against overload, overvoltage, input undervoltage as well as short circuit (continuous). They require no minimum load and comply with EN55032 class A (without additional components). We offer the following types of this Mean Well series: DKMW20F-12, DKMW20F-15, DKMW20G-12 and DKMW20G-15. dual output output: 20W output voltage tolerance: ±1,5% withstand voltage: 1500V DC operating temperature: -40 to +85°C dimensions: 25,4x25,4x10,2mm weight: 18g

Specifications

manufacturer
Manufacturer's name DKMW20F-15
GTIN 4711287477244
Input voltage [V] 9...36
Output voltage [V] ±15
Output current range [mA] ±0...660
Efficiency [%] 87
Data Sheet

Unit price

30,99 €

Volume discounts

Quantity Unit price
50 + 28,89 €

Stock: 15
Further delivery:
CW 18/2025
