DKMW15F-12

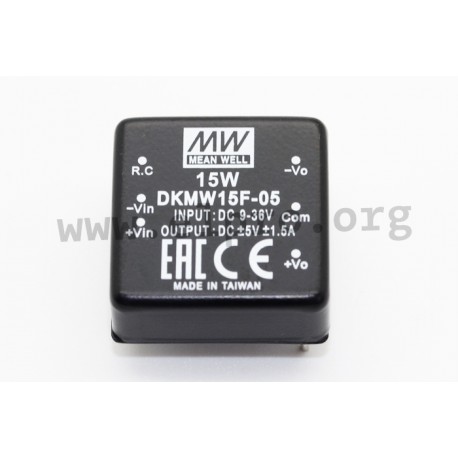

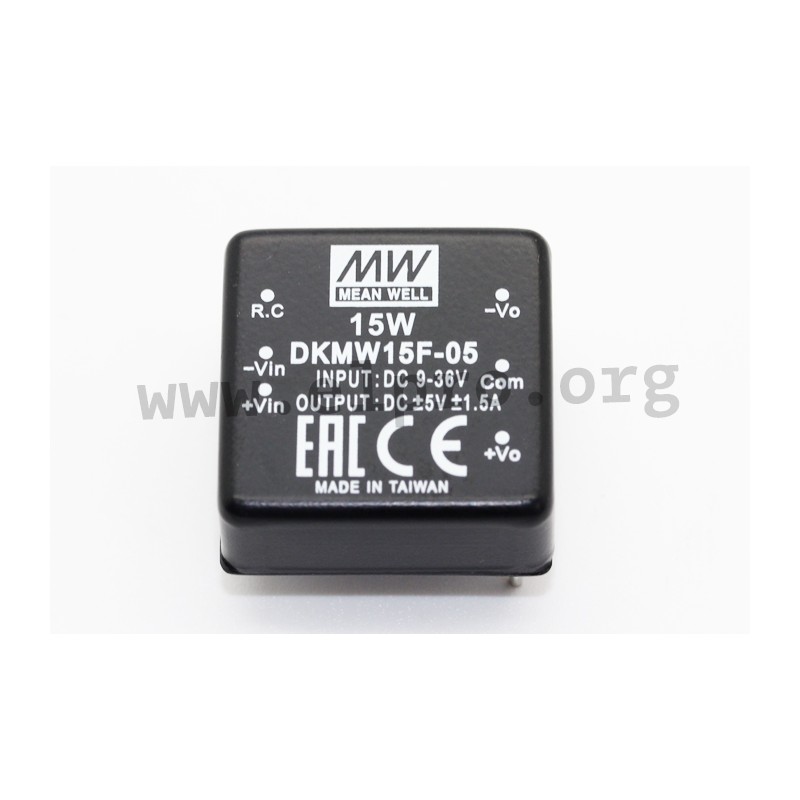

Mean Well DC/DC converter series DKMW15

Converter modules in a 1x1 inch DIL housing with 15W and a regulated output voltage. These devices have an input voltage ratio of 4:1 and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKMW15F-05, DKMW15F-12, DKMW15F-15, DKMW15G-05, DKMW15G-12 and DKMW15G-15.

  • dual output
  • output: 15W
  • overload protection: 110 to 250%
  • withstand voltage: 3000V
  • operating temperature: -40 to +85°C
  • dimensions: 25,4x25,4x10,2mm
  • weight: 20g
DKMW15F-12, Mean Well DC/DC converters, 15W, 1"x1", DKMW15 series

DKMW15F-12

235284 DKMW15F-12 DKMW15F-12 4711287477060 Mean Well DC/DC converter series DKMW15. Converter modules in a 1x1 inch DIL housing with 15W and a regulated output voltage. These devices have an input voltage ratio of 4:1 and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKMW15F-05, DKMW15F-12, DKMW15F-15, DKMW15G-05, DKMW15G-12 and DKMW15G-15. dual output output: 15W overload protection: 110 to 250% withstand voltage: 3000V operating temperature: -40 to +85°C dimensions: 25,4x25,4x10,2mm weight: 20g

Specifications

manufacturer
Manufacturer's name DKMW15F-12
GTIN 4711287477060
Output voltage [V] ±12
Input voltage range [V] 9...36
Output current range [mA] ±0...625
Efficiency [%] 88
Ripple [mVp-p] 50
Data Sheet

Unit price

22,79 €

Volume discounts

Quantity Unit price
50 + 21,29 €

Stock: 0
Next incoming goods:
CW 13/2025
30 units

Further delivery:
CW 22/2025
