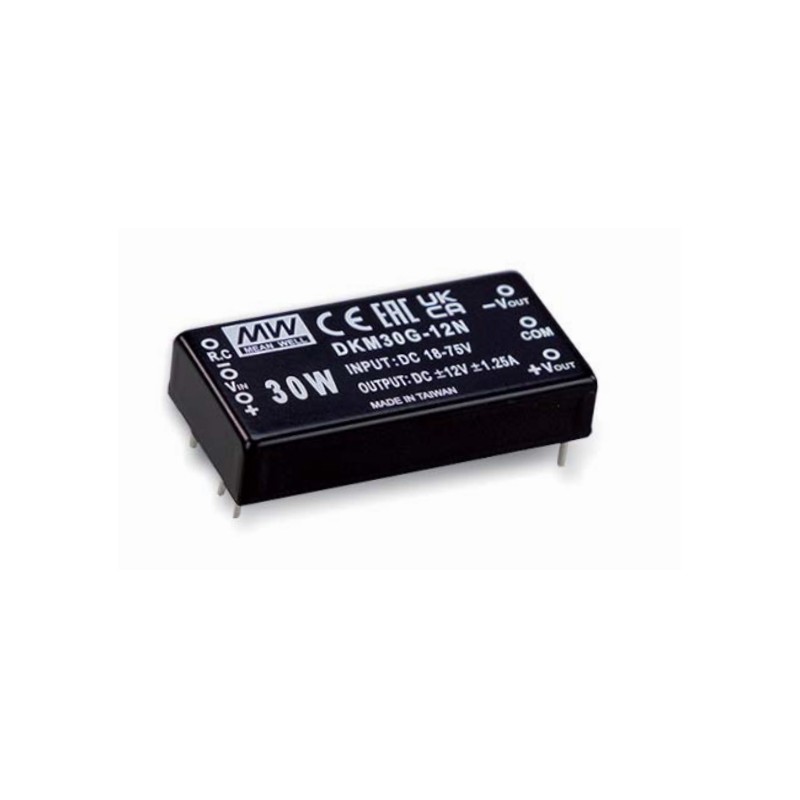

DKM30G-15N

Mean Well DC/DC converter series DKM30-N

DC/DC converter modules in a 2"x1" housing with 30W, a remote ON/OFF control and an input voltage ratio of 4:1. These devices do not require a minimum load and are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKM30F-12N, DKM30F-15N, DKM30G-12N and DKM30G-15N.

  • dual output
  • output: 30W
  • overload protection: 110 to 230%
  • withstand voltage: 3000V DC
  • operating temperature: -40 to +90°C
  • weight: 31g

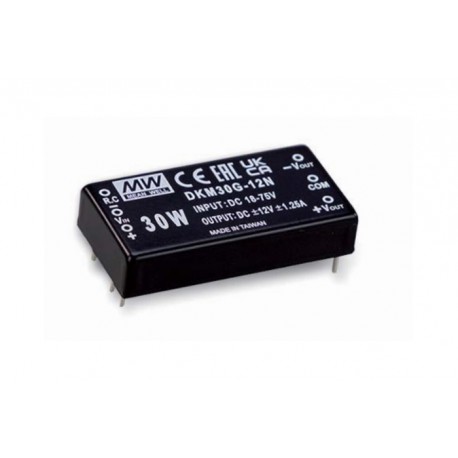

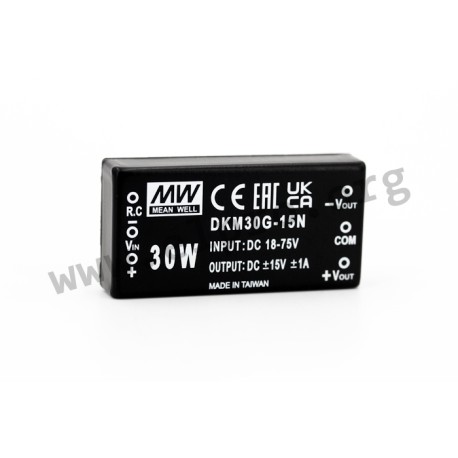

DKM30G-15N, Mean Well DC/DC converters, 30W, 2"x1", DKM30-N series

DKM30G-15N

242660 DKM30G-15N DKM30G-15N 4711287487069 Mean Well DC/DC converter series DKM30-N. DC/DC converter modules in a 2"x1" housing with 30W, a remote ON/OFF control and an input voltage ratio of 4:1. These devices do not require a minimum load and are protected against overload, short circuit, overvoltage as well as overtemperature. They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKM30F-12N, DKM30F-15N, DKM30G-12N and DKM30G-15N. dual output output: 30W overload protection: 110 to 230% withstand voltage: 3000V DC operating temperature: -40 to +90°C weight: 31g

Specifications

manufacturer
Manufacturer's name DKM30G-15N
GTIN 4711287487069
Output voltage [V] ±15
Input voltage range [V] 18...75
Efficiency [%] 89
Output current [A] ±0...1
Ripple [mVp-p] 150
Data Sheet

Unit price

27,29 €

Volume discounts

Quantity Unit price
50 + 25,39 €

Stock: 20
Further delivery:
CW 16/2025
