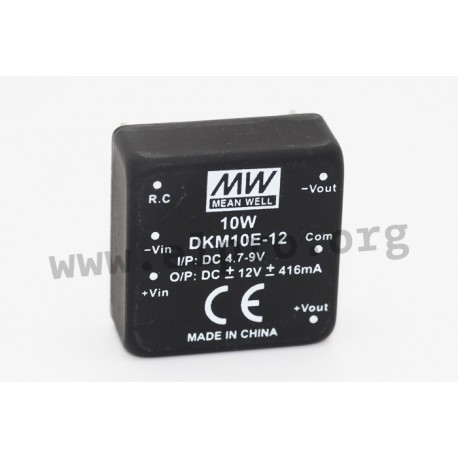

DKM10E-12

Mean Well DC/DC converter series DKM10

DC/DC converter modules in a 1"x1" DIL housing with 10W, a regulated output voltage, a remote ON/OFF control and an input voltage ratio of 2:1. These devices require no minimum load and are protected against overload, input undervoltage, overvoltage as well as short circuit (continuous). They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKM10E-05, DKM10E-12, DKM10E-15, DKM10A-05, DKM10A-12, DKM10A-15, DKM10B-05, DKM10B-12, DKM10B-15, DKM10C-05, DKM10C-12 and DKM10C-15.

  • dual output
  • output: 10W
  • output voltage tolerance: ±1,5%
  • maximal ripple and noise: 50mVpp
  • withstand voltage: 1500V DC
  • operating temperature: -40 to +85°C
  • weight: 18g
DKM10E-12

DKM10E-12

110515 DKM10E-12 DKM10E-12 Mean Well DC/DC converter series DKM10. DC/DC converter modules in a 1"x1" DIL housing with 10W, a regulated output voltage, a remote ON/OFF control and an input voltage ratio of 2:1. These devices require no minimum load and are protected against overload, input undervoltage, overvoltage as well as short circuit (continuous). They are suitable for PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKM10E-05, DKM10E-12, DKM10E-15, DKM10A-05, DKM10A-12, DKM10A-15, DKM10B-05, DKM10B-12, DKM10B-15, DKM10C-05, DKM10C-12 and DKM10C-15. dual output output: 10W output voltage tolerance: ±1,5% maximal ripple and noise: 50mVpp withstand voltage: 1500V DC operating temperature: -40 to +85°C weight: 18g

Specifications

manufacturer
Manufacturer's name DKM10E-12
Input voltage [V] 4,7...9
Output voltage [V] ±12
Output current range [mA] ±0...416
Efficiency [%] 87
Data Sheet

Unit price

18,99 €

Volume discounts

Quantity Unit price
50 + 17,69 €

Stock: 66
Further delivery:
CW 22/2025
