DKA15A-05

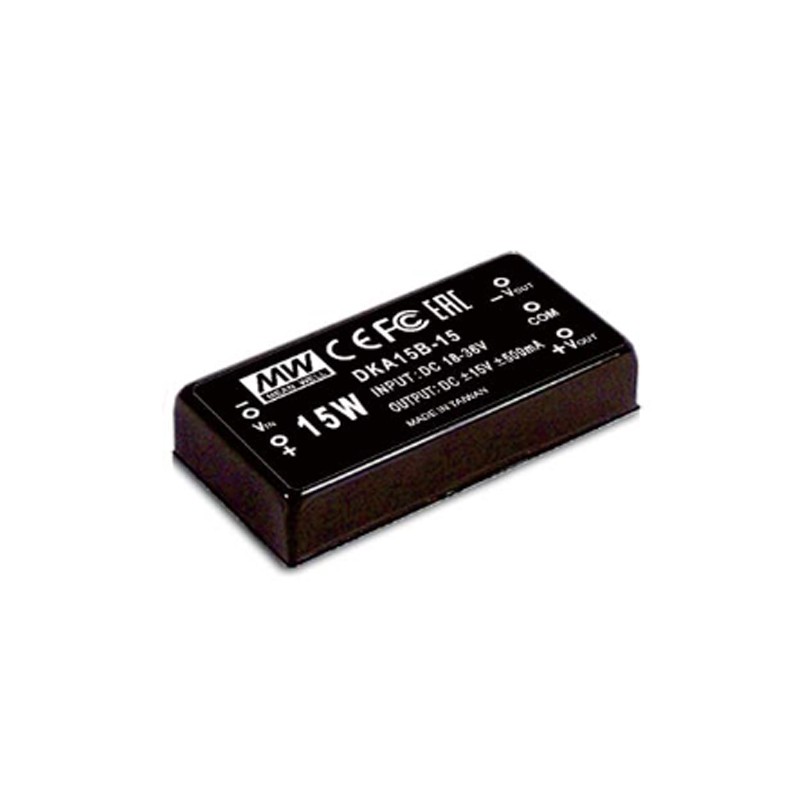

Mean Well DC/DC converter series DKA15

Converter modules in a 2x1 inch housing with 15W and a regulated output voltage. These devices have an input voltage ratio of 2:1 and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKA15A-05, DKA15B-05,DKA15C-05, DKA15A-12, DKA15B-12, DKA15C-12, DKA15A-15, DKA15B-15, and DKA15C-15.

  • dual output
  • output: 15W
  • overload protection: 110 to 250%
  • withstand voltage: 1000V
  • operating temperature: -40 to +71°C
  • dimensions: 50,8x25,4x11,27mm
  • weight: 32g

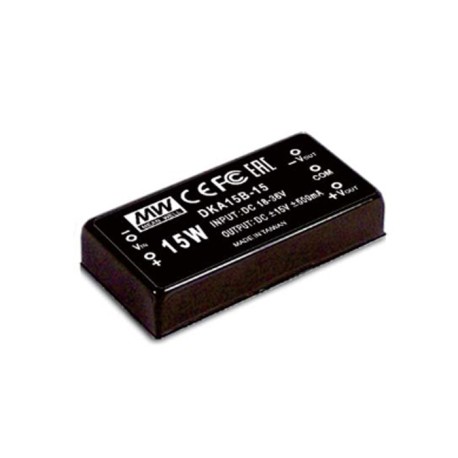

DKA15A-05, Mean Well DC/DC converters, 15W, 2"x1", DKA15 series

DKA15A-05

246572 DKA15A-05 DKA15A-05 4711287471334 Mean Well DC/DC converter series DKA15. Converter modules in a 2x1 inch housing with 15W and a regulated output voltage. These devices have an input voltage ratio of 2:1 and are protected against short circuit, overload (auto recovery) as well as overvoltage. They are suitable for direct PCB mounting and comply with EN55032 class A. We offer the following types of this Mean Well series: DKA15A-05, DKA15B-05,DKA15C-05, DKA15A-12, DKA15B-12, DKA15C-12, DKA15A-15, DKA15B-15, and DKA15C-15. dual output output: 15W overload protection: 110 to 250% withstand voltage: 1000V operating temperature: -40 to +71°C dimensions: 50,8x25,4x11,27mm weight: 32g

Specifications

manufacturer
Manufacturer's name DKA15A-05
GTIN 4711287471334
Output voltage [V] ±5
Input voltage range [V] 9...18
Ripple [Vp-p] 50
Efficiency [%] 80
Output current [A] ±150...±1500
Ripple [mVp-p] 50
Data Sheet

Unit price

20,29 €

Stock: 0
Further delivery:
CW 13/2025
